Our Products

Currently, The Main Products Of SWMC: Surface Drilling Rig, Track Bulldozer, Backhoe Loader, OEM Parts For The Machinery.

About Our Introduction

Track Bulldozer

The SWMC track bulldozers are developed on the basis of the bulldozers of world famous brands, which are equipped with Cummins engine or Weichai engine with the power output scope from 160hp to 320hp, which have various types, such as standard type, swamp type, waste-landfill type, forest logging type, coal mining type etc.

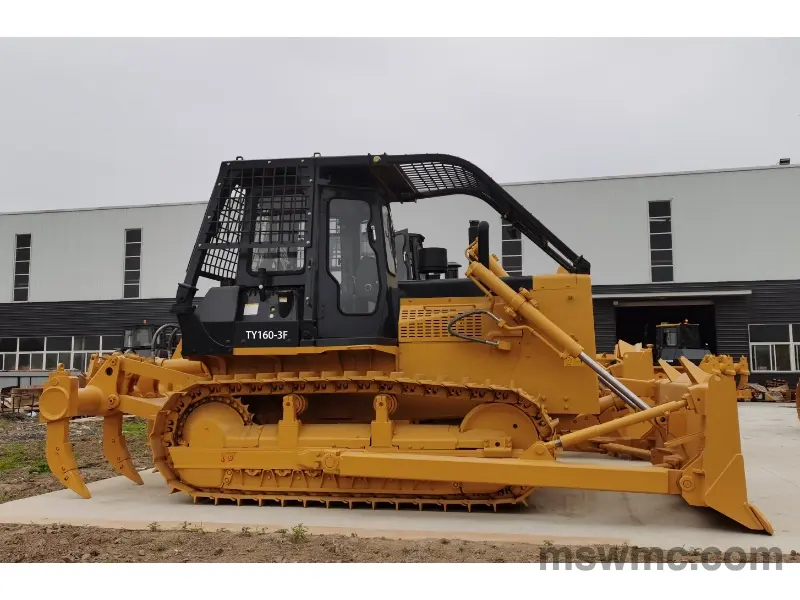

Bulldozer TY160

Overall Dimension: 4990×3440×3110 mm Operating Weight: 16400 kgs Engine Model：Weichai WD10G178E25 Rated Power: 131 KW Blade Capacity: 4.5 m³ (Straigt-tilting blade)

Bulldozer TY160

Overall Dimension: 5140×3440×3180 mm (Without winch) Operating Weight: 16800 kgs Engine Model：Weichai WD10G178E25 Rated Power: 131 KW Max. drawbar pull of Winch: 150 KN (for first layer)

Bulldozer TY220

Overall Dimension: 5460×3725×3395 mm (Standard) Operating Weight: 23500 kgs (Standard) Engine: Model Cummins NT855-C280S10 Rated Power: 175 KW Blade Capacity: 6.4 m³ (Straigt-tilting blade)

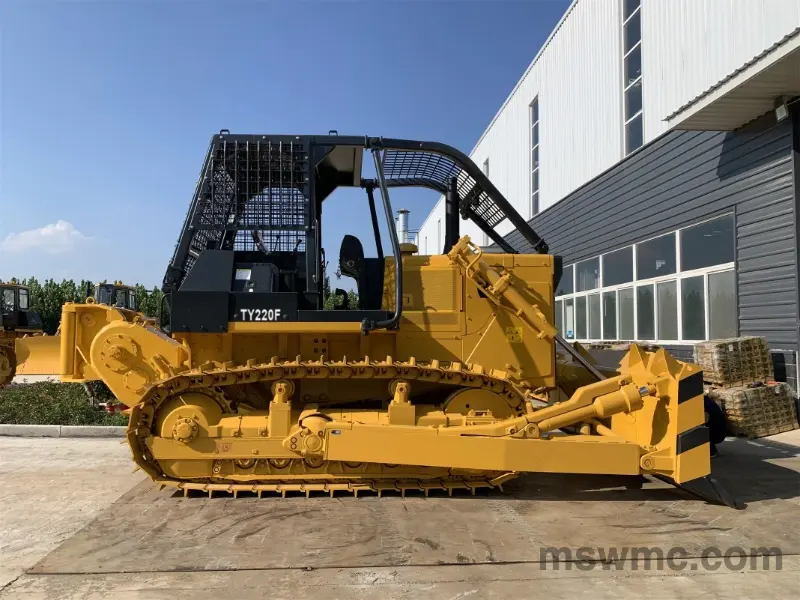

Bulldozer TY220F

Overall Dimension: 5390×3735×3530 mm (Standard) Operating Weight: 24700 kgs (With forestry protection frame) Engine: Model Cummins NT855-C280S10 Rated Power: 175 KW Max. drawbar pull of Winch: 350 KN (for first layer)

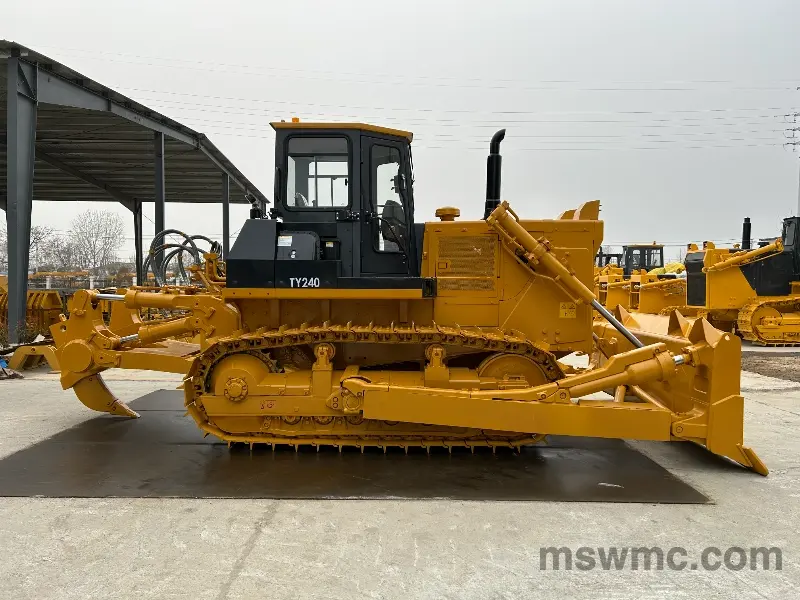

Bulldozer TY240

Overall Dimension: 5460×3725×3395 mm (Standard) Operating Weight: 23500 kgs (Standard) Engine: Model Cummins NT855-C280S10 Rated Power: 187 KW Blade Capacity: 6.4 m³ (Straigt-tilting blade)

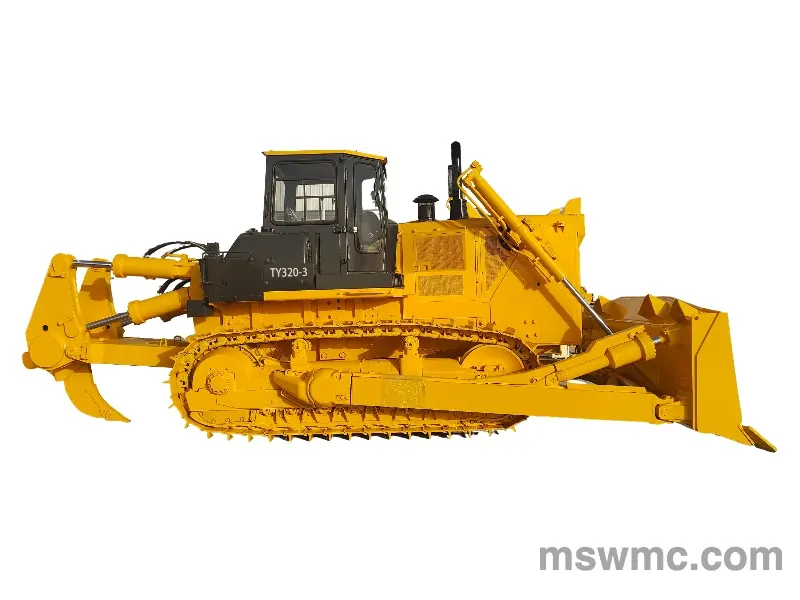

Bulldozer TY320

Overall Dimension: 6880×4150×3640 mm Operating Weight: 37200 Kgs (Without ripper) Engine Model:Cummins NTA855-C360S10 Rated Power: 257 KW Blade Capacity: 10.0 m³ (Straigt-tilting blade)

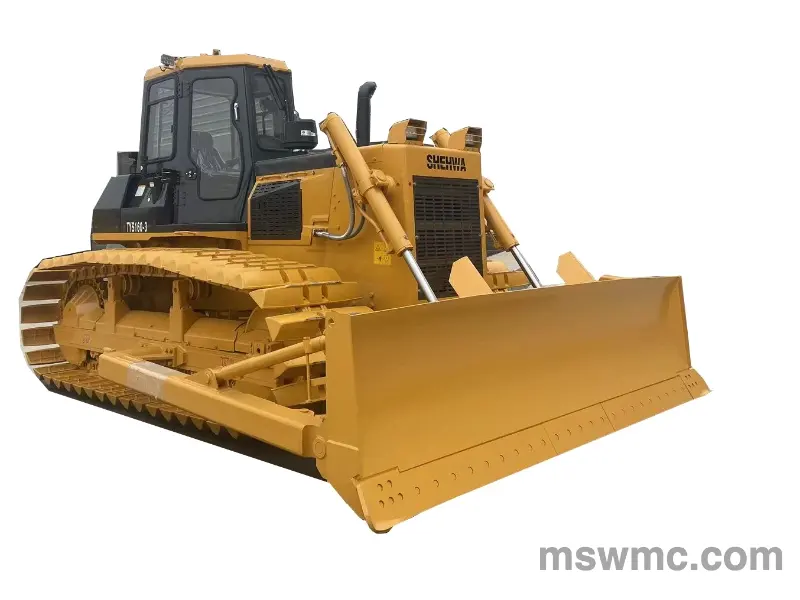

Bulldozer TYS160

Overall Dimension: 5176×4190×3170 mm Operating Weight: 18100 kgs Engine Model：Weichai WD10G178E25 Rated Power: 131 KW Blade Capacity: 3.8 m³ (Straigt-tilting blade)

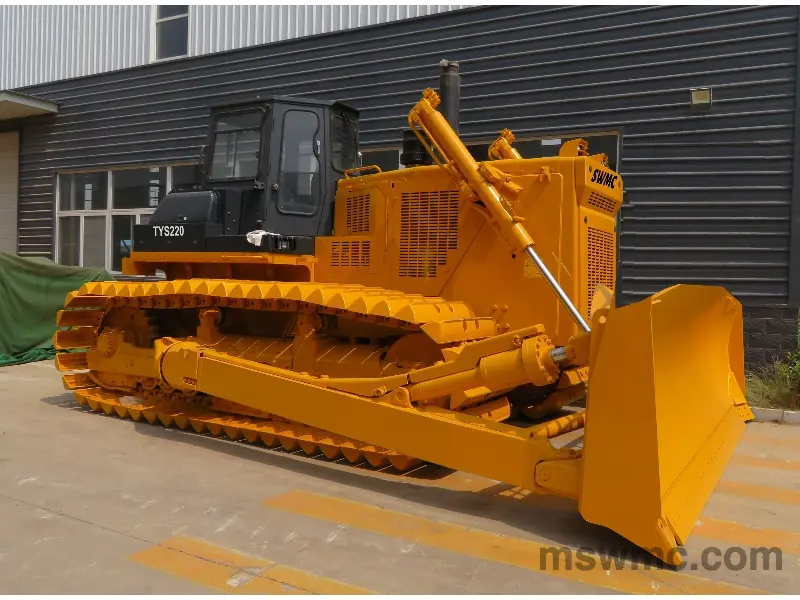

Bulldozer TYS220

Overall Dimension: 6290×4365×3395 mm (Standard) Operating Weight: 25700 kgs (Standard) Engine: Model Cummins NT855-C280S10 Rated Power: 175 KW Blade Capacity: 6.8 m³ (Straigt-tilting blade)
