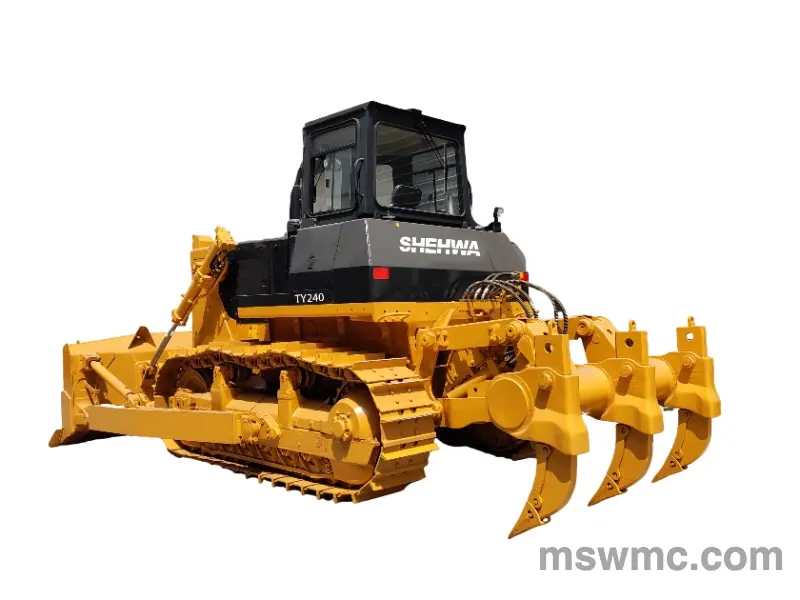

TY240
Track Bulldozer TY240 (240HP) - Large crawler bulldozer with high productivity for heavy construction and mining operations.
Quality Durable Efficiency
Features
Maximum Power
240HP engine delivers exceptional pushing force for the most demanding applications.
High Productivity
Large blade capacity for moving maximum material in minimum time.
Robust Frame
Extra-strong mainframe designed to handle extreme loads and stresses.
Advanced Transmission
Powershift transmission for smooth speed changes and optimal power delivery.
Specifications
| Model | TY240 |
| Engine Power | 240HP |
| Engine Brand | Cummins |
| Operating Weight | 23,500 kg |
| Blade Type | Semi-U/U-Blade |
| Dimension (L×W×H) | 5460×3725×3395mm |
| Engine Model | Cummins NT855-C280S10 |
| Rated Power | 187 KW @1850rpm |
| Max Torque | 1130 N·m @1200rpm |
| Fuel Consumption | 215 g/kW·h |
| Transmission | Planetary gear, power-shift |
| Travel Speed (Forward) | 0-3.6/6.5/11.2 km/h |
| Travel Speed (Reverse) | 0-4.3/7.7/13.2 km/h |
| Track Rollers | 6 each side |
| Track Shoe Width | 560mm |
| Track Gauge | 2000mm |
| Ground Pressure | 0.077 Mpa |
| Hydraulic Max Pressure | 14 Mpa |
| Blade Capacity | 6.4 m³ |
| Blade Width | 3725mm |
| Max Drop Below Ground | 540mm |
| Gradient | 30° |
## Track Bulldozer TY240
The TY240 is a high-performance bulldozer built for maximum productivity in demanding operations. Its 240HP engine and large blade capacity make it perfect for major construction and mining projects.
### Key Features
- 240HP Cummins engine for maximum power
- Large blade capacity for high productivity
- Powershift transmission for smooth operation
- Heavy-duty mainframe for extreme durability
### Applications
- Large mining operations
- Major infrastructure projects
- Dam construction
- Heavy earth-moving
