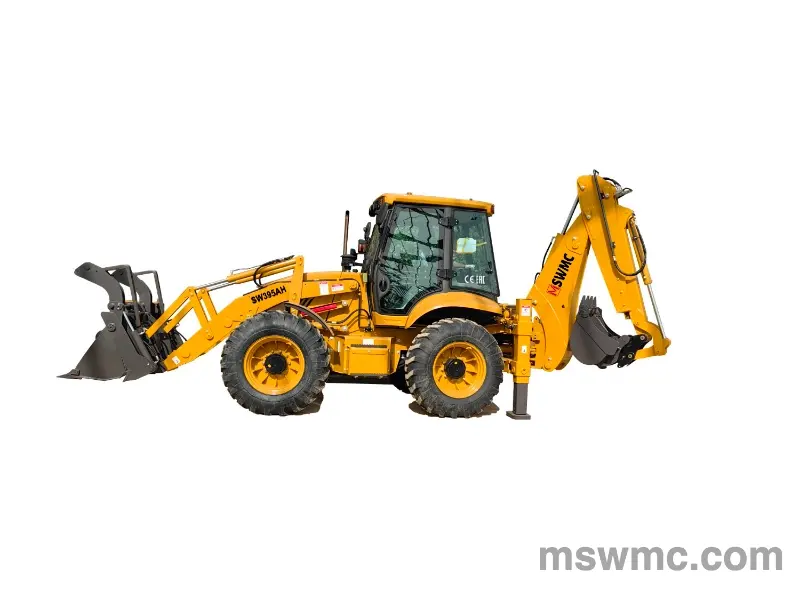

Four-wheel steering backhoe loader SW395AH
Operating weight: 10050Kgs Gross power: 75kW Maximum dig depth: 3.82m Maximum loader bucket capacity: 1.2m³
Product Description
SAFETY AND SECURITY.
•

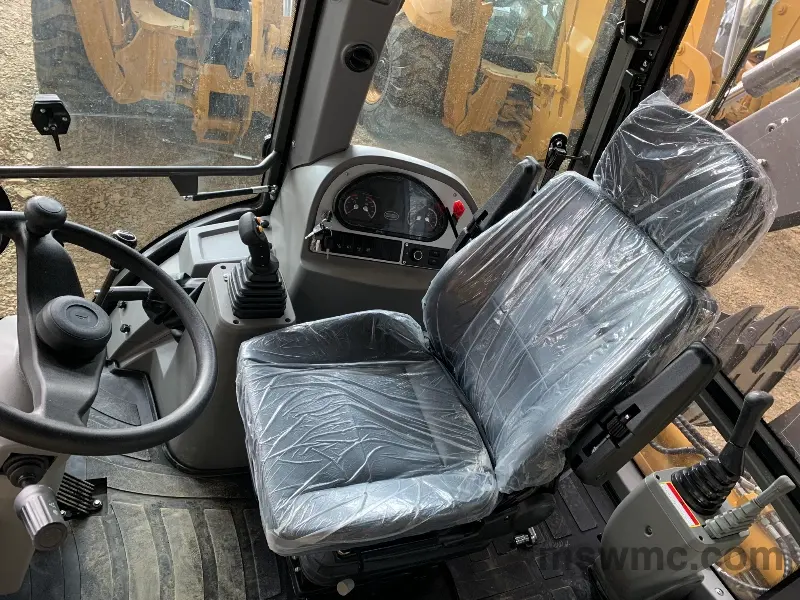

ROPS and FOPS cab designed in order to offer the best visibility, ergonomics and comfort.High end hydraulic system ensures stable and efficient productivity.Various attachments suit for differential operating modes, and the telescopic arm expands your working range.
•
Innovation built in.This machine packs the sort of innovative featuresthat make backhoes synonymous withclass-leading productivity, performance and efficiency.
•

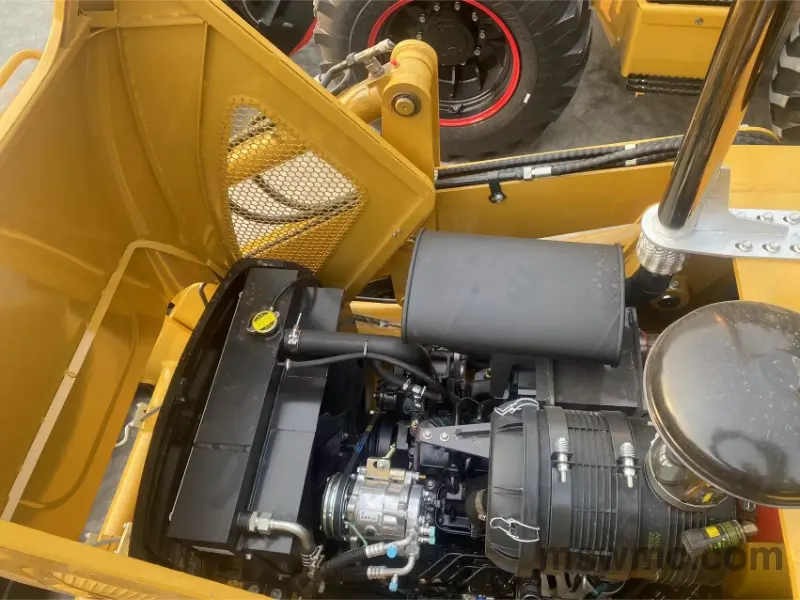

High service life,high load carrying capacity and high working speed.Modular radiator-24hours of uninterrupted operation.Efficient and reliable hygraulic system.
SPECIFICATIONS
| dimension | Operating weight | 10050KG | ||
| Overall dimension(L×W×H) | 6450×2530×3120mm | |||
| Wheel base | 2335mm | |||
| Wheel tread | 2050mm | |||
| Ground clearance | 450mm | |||
| Performance | Loader bucket capacity | 1.2m³ | ||
| Loader breakout force | 47KN | |||
| Loader lifting capacity | 2500KG | |||
| Loader Dumping height | 3050mm | |||
| Loader Dumping reach | 870mm | |||
| Loader digging depth | 52mm | |||
| Backhoe bucket capacity | 0.3m³ | |||
| Backhoe bucket digging force | 50KN | |||
| Backhoe swing angle | 180° | |||
| Backhoe dumping height | 4050mm | |||
| Backhoe max digging depth | 3820mm | |||
| Max. traction force | 86KN | |||
| Engine | Model | Yuchai YC4A105Z-T20 | ||
| Type | Inline,direct injection,water-cooled,turbocharged,4-stroke | |||
| Cylinder-Inner diameter*stroke | 4-108×132 | |||
| Rated power | 75KW | |||
| Rated speed | 2200r/min | |||
| Min. fuel consumption | 230g/kw.h | |||
| Max. torque | 400N.m | |||
| Displacement | 4.8L | |||
| Steering system | Type | hydraulic steering | ||
| Diverter model | BZZ5-250 | |||
| Pump delivery | 63ml/r | |||
| Steering angle | ±35° | |||
| Min. turning radius | 6950mm | |||
| Driving axle | Model | WZL100DF | ||
| Manufacturer | China axle | |||
| Max. load of front axle | 13T | |||
| Max. load of rear axle | 13T | |||
| Transmission | Gearbox | Mechanically Operated Hydraulic Synchronized Shift | ||
| Model | ZL15 | |||
| Gears | forward and 4 reverse gears | |||
| Hydraulic torque converter | YJ320 | |||
| Inlet pressure | 0.4-0.65Mpa | |||
| Outlet pressure | 1.6-1.9Mpa | |||
| Cooling mode | oil-cooling pressure circulation | |||
| Pump delivery | 40ml/r | |||
| tyre | Front/Rear model | 16.9-28 | ||
| Front tyre pressure | 0.35Mpa | |||
| Rear tyre pressure | 0.35MPa | |||
| Travel speed | 36Km/h | |||
| Brake system | Service brake | Gas pushed oil, built-in-selfregulation,self-balance | ||
| Parking brake | Manual brake | |||
| System pressure | Loading hydraulic system | 20Mpa | ||
| Digging hydraulic system | 20Mpa | |||
| Steering hydraulic system | 14Mpa | |||
