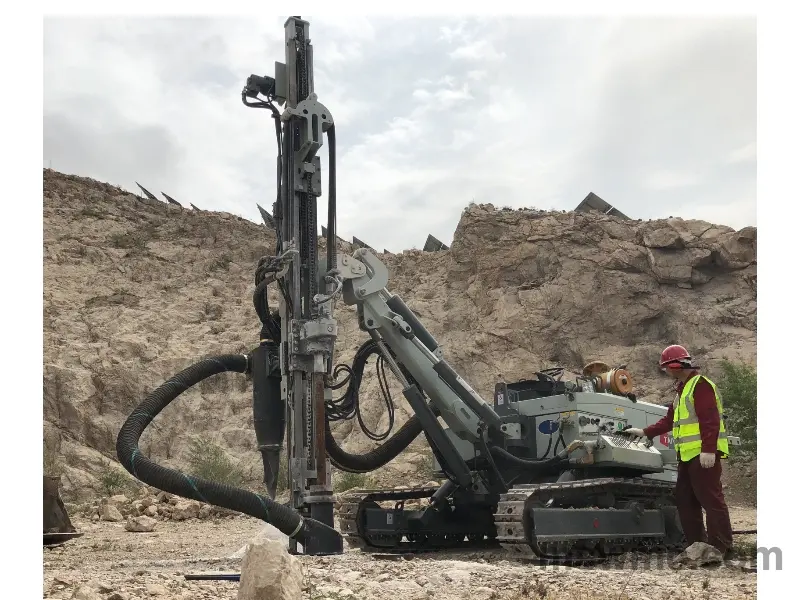

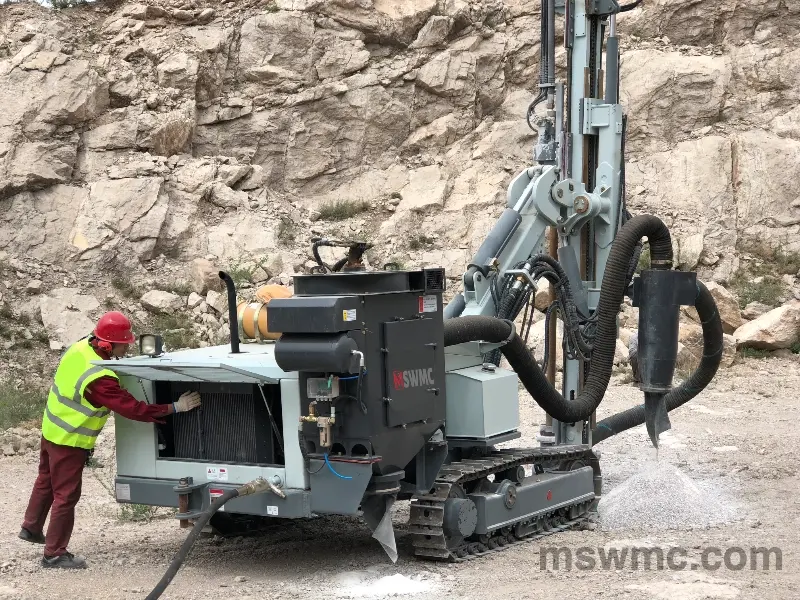

SWDS 90A-DTH
Separated crawler mounted surface hydraulic down-the-hole drilling rig with gravity shaft design
Quality Durable Efficiency
Features
Off-load Capability
Frame body designed with gravity shaft device
Reduced Friction
Reduces friction resistance during walking
Enhanced Stability
Makes the chassis more stable during operation
Specifications
| Model | SWDS 90A-DTH |
| Type | Separated Crawler Mounted |
| Drilling Method | Down-the-hole |
| Power Type | Hydraulic |
| Drilling Hole Diameter | 90-152mm |
| Working Air Pressure | 1.38-2.46 Mpa |
| Turning Torque | 1970 N.m |
| Turning Speed | 0-100 Rpm |
| Lifting Force | 20 KN |
| Sliding Frame Swing | Left 53°/Right 35° |
| Sliding Frame Pitching | 180° |
| Drilling Boom Swing | Left/Right 45° |
| Drilling Boom Pitching | Horizontal 25°/60° |
| Grade Ability | 35° |
| Engine Manufacturer | YUCHAI Diesel etc |
| Rated Power | 56/70 Kw |
| Dimension | 6900×2186×2300mm |
| Weight | 6500kg |
## SWDS 90A-DTH Drilling Rig
The frame body is designed with gravity shaft device, which reduces the friction resistance during walking, enhances the firmness of connection between the body and the track, and makes the chassis of the drilling rig more stable.
Perfect for smaller-scale operations requiring reliable drilling performance.
The frame body is designed with gravity shaft device, which reduces the friction resistance during walking, enhances the firmness of connection between the body and the track, and makes the chassis of the drilling rig more stable.
Perfect for smaller-scale operations requiring reliable drilling performance.
