Surface Drilling Rig
Featured Product

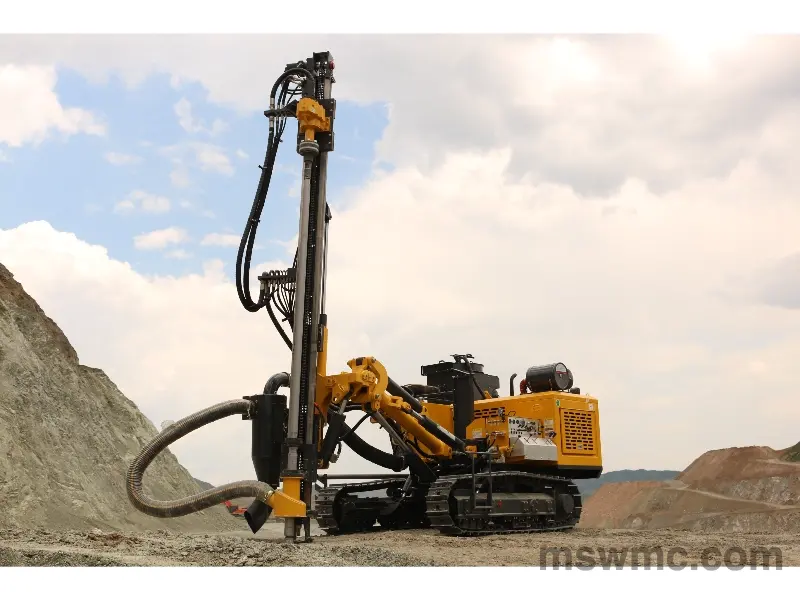

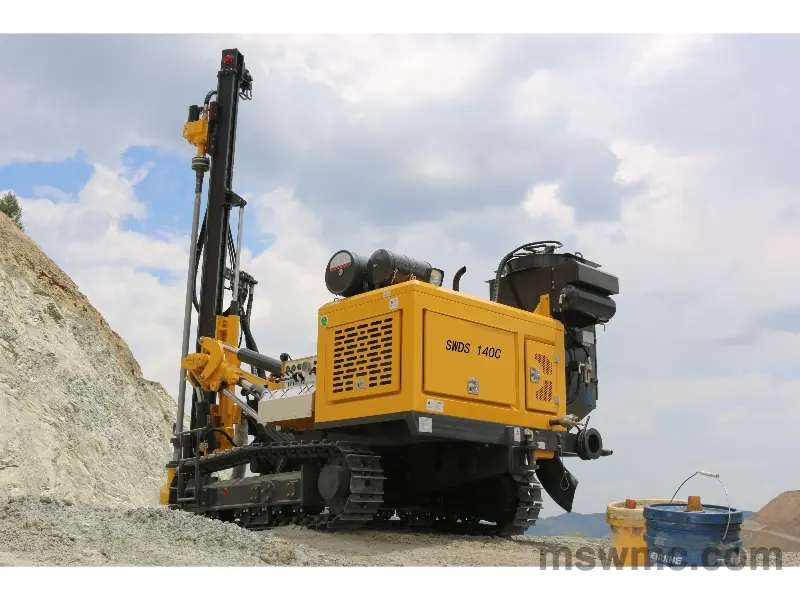

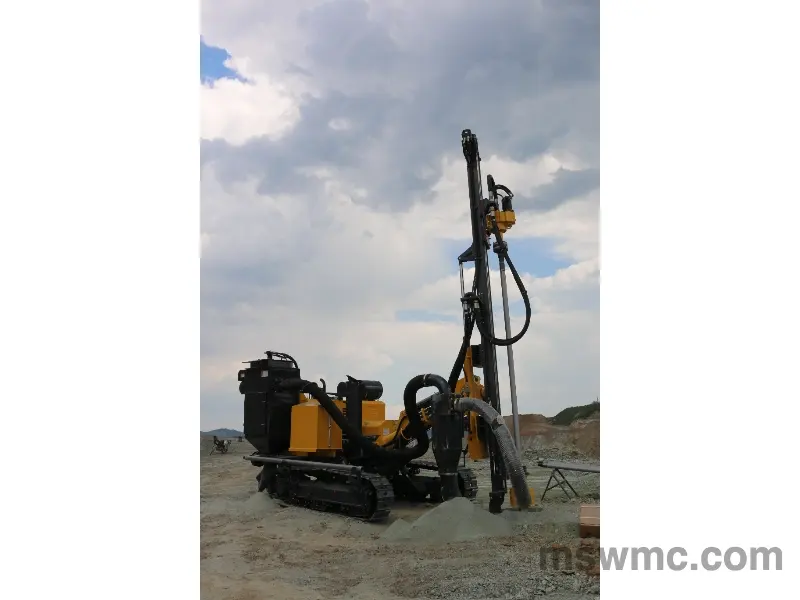

SWDS 140C-DTH
Separated crawler mounted surface hydraulic down-the-hole drilling rig with gravity shaft device
Quality Durable Efficiency
Features
Off-load Capability
Frame body designed with gravity shaft device to reduce friction resistance
Enhanced Connection
Enhances the firmness of connection between the body and the track
Stable Chassis
Makes the chassis of the drilling rig more stable during operation
Specifications
| Model | SWDS 140C-DTH |
| Type | Separated Crawler Mounted |
| Drilling Method | Down-the-hole |
| Power Type | Hydraulic |
| Drilling Hole Diameter | 90-178mm |
| Working Air Pressure | 1.7-2.5 Mpa |
| Turning Torque | 3280 N.m |
| Turning Speed | 0-110 Rpm |
| Lifting Force | 20 KN |
| Sliding Frame Swing | Left 54°/Right 50° |
| Sliding Frame Pitching | 135° |
| Drilling Boom Swing | Left/Right 45° |
| Drilling Boom Pitching | Horizontal 22°/65° |
| Grade Ability | 35° |

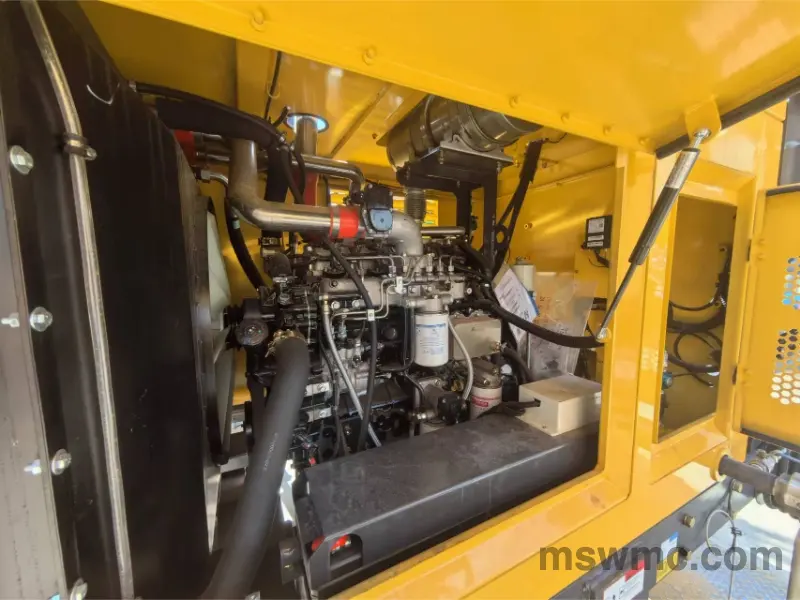

| Engine Manufacturer | YUCHAI Diesel etc |
| Rated Power | 73.5/92 Kw |
| Dimension | 5750×2170×2300mm |
| Weight | 7200kg |
## SWDS 140C-DTH Drilling Rig
### Off-load Capability
The frame body is designed with gravity shaft device, which reduces the friction resistance during walking, enhances the firmness of connection between the body and the track, and makes the chassis of the drilling rig more stable.
This design innovation significantly improves operational efficiency and equipment longevity.
### Off-load Capability
The frame body is designed with gravity shaft device, which reduces the friction resistance during walking, enhances the firmness of connection between the body and the track, and makes the chassis of the drilling rig more stable.
This design innovation significantly improves operational efficiency and equipment longevity.
