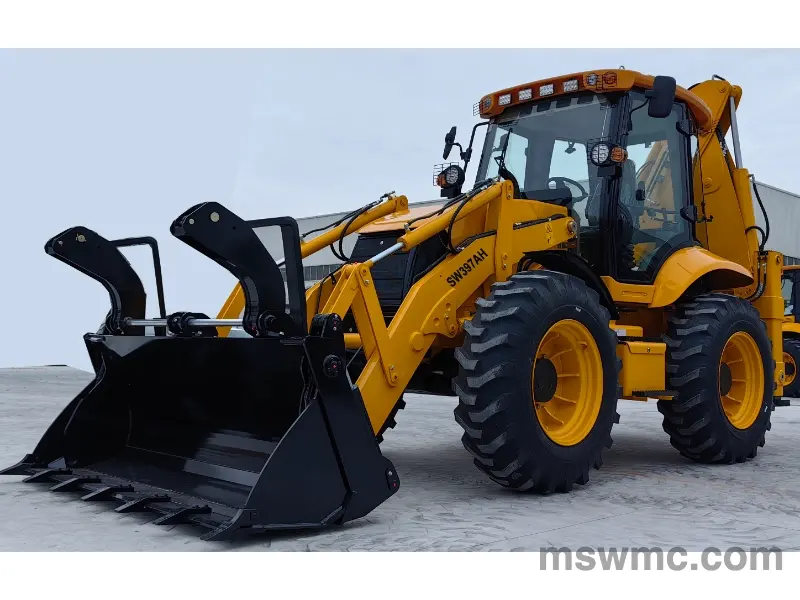

Four-wheel steering backhoe loader SW397AH

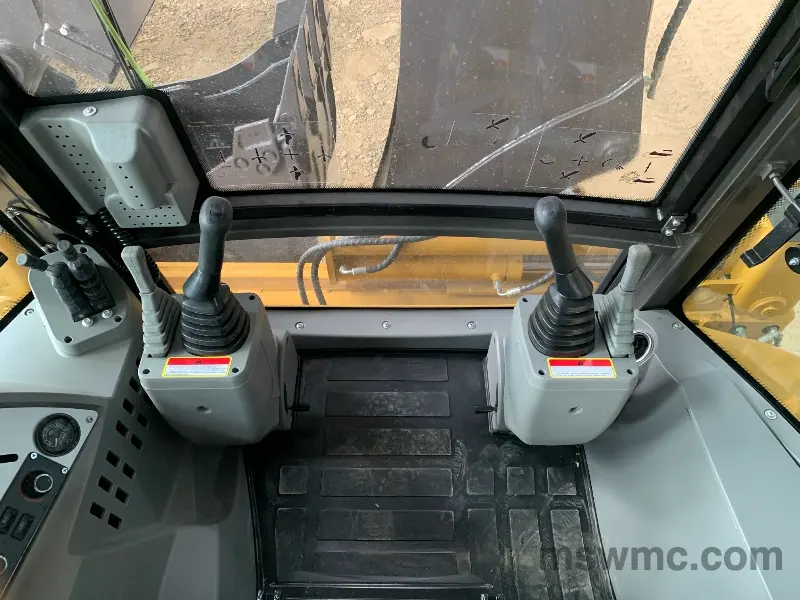

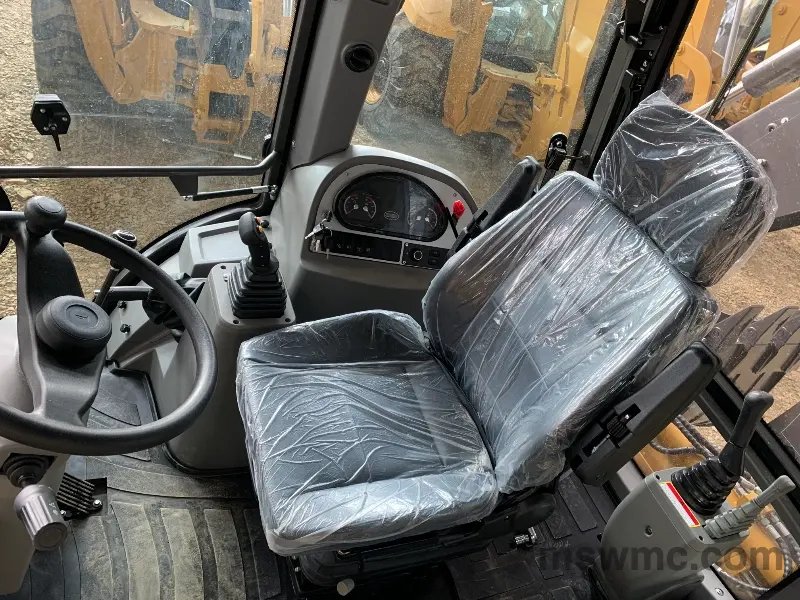

Gross power: 75kW Maximum dig depth: 3.82m Maximum loader bucket capacity: 1.2m³ With Carraro axle high-end configuration：Italy Carraro Axles, Electric auto transmission,Rops & Fops Cab with air conditioner,Joysticks,Piston Pump, Loading sensitive valves,YUCHAI Stage II Enigne 90L displacement;Electric Transmission; Carraro Axles; Danfoss Variable Pump Full electrical control Load Sensitive Valves Danfoss Steering and Priority valve Integrated seat and pilot handle
Product Description
SAFETY AND SECURITY.
ROPS and FOPS cab designed in order to offer the best visibility, ergonomics and comfort.High end hydraulic system ensures stable and efficient productivity.Various attachments suit for differential operating modes, and the telescopic arm expands your working range.
Value for money. SW397AH backhoe offers low cost of ownership and superior strength as standard. Coupled with the industry's best warranty, this provides customers with unmatched levels of Return on Investment.

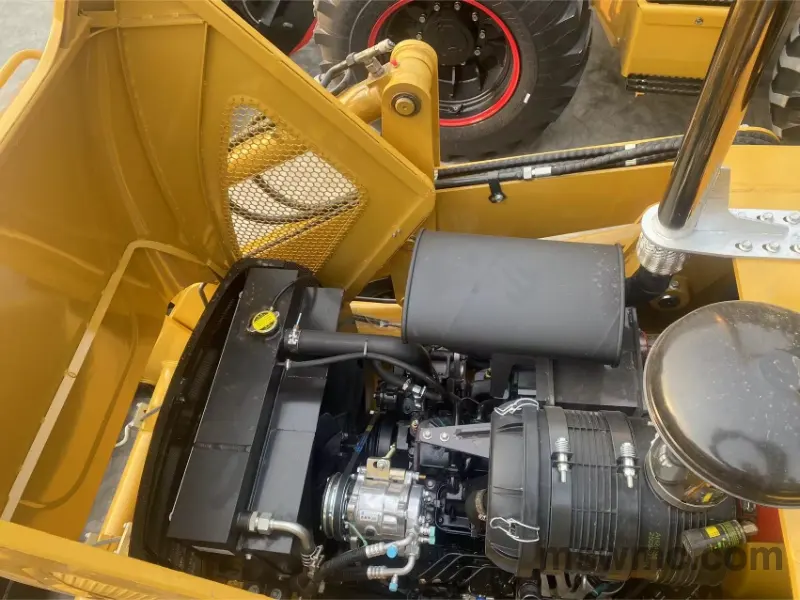

High service life,high load carrying capacity and high working speed.Modular radiator-24hours of uninterrupted operation. Efficient and reliable hygraulic system. variable pump;Load sensitive valve;Pilot linkage control
QUALITY, RELIABILITY AND DURABILITY.
SPECIFICATIONS
| Overall dimension | Operating weight | 10050KG | ||
| Overall dimension(L×W×H) | 6450×2530×3120mm | |||
| Wheel base | 2335mm | |||
| Wheel tread | 2050mm | |||
| Ground clearance | 450mm | |||
| Performance | Loader bucket capacity | 1.2m³ | ||
| Loader breakout force | 47KN | |||
| Loader lifting capacity | 2500KG | |||
| Loader Dumping height | 3050mm | |||
| Loader Dumping reach | 870mm | |||
| Loader digging depth | 52mm | |||
| Backhoe bucket capacity | 0.3m³ | |||
| Backhoe bucket digging force | 50KN | |||
| Backhoe swing angle | 180° | |||
| Backhoe dumping height | 3795mm | |||
| Backhoe max digging depth | 4085mm | |||
| Max. traction force | 86KN | |||

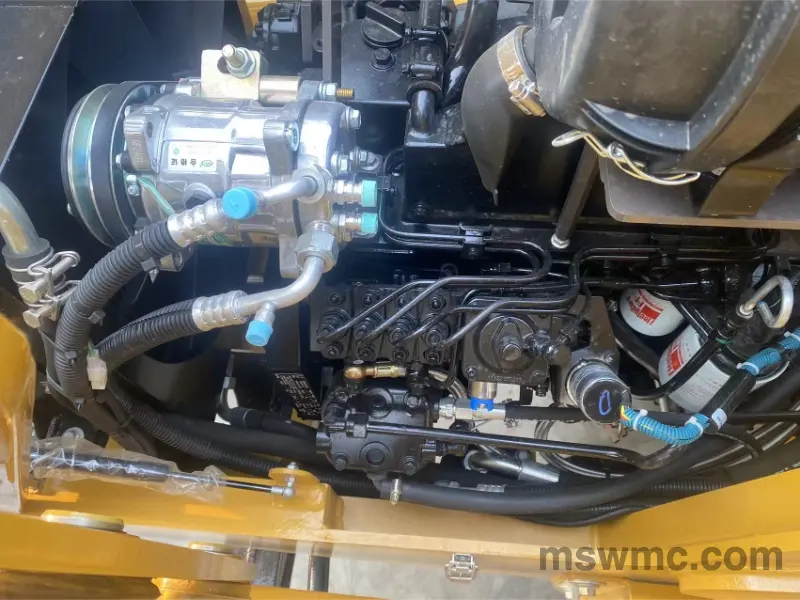

| Engine | Model | Yuchai YC4A105Z-T20 | ||
| Type | Inline,direct injection,water-cooled,turbocharged,4-stroke | |||
| Cylinder-Inner diameter*stroke | 4-108×132 | |||
| Rated power | 75KW | |||
| Rated speed | 2200r/min | |||
| Min. fuel consumption | 230g/kw.h | |||
| Max. torque | 400N.m | |||
| Displacement | 4.8L | |||
| Steering system | Type | hydraulic steering | ||
| Diverter model | BZZ5-250 | |||
| Pump delivery | 63ml/r | |||
| Steering angle | ±35° | |||
| Min. turning radius | 6581mm | |||
| Driving axle | Model | WZL100DF | ||
| Manufacturer | China axle | |||
| Max. load of front axle | 13T | |||
| Max. load of rear axle | 13T | |||
| Transmission | Gearbox | Mechanically Operated Hydraulic Synchronized Shift | ||
| Model | ZL15 | |||
| Gears | forward and 4 reverse gears | |||
| Hydraulic torque converter | YJ320 | |||
| Inlet pressure | 0.4-0.65Mpa | |||
| Outlet pressure | 1.6-1.9Mpa | |||
| Cooling mode | oil-cooling pressure circulation | |||
| Pump delivery | 40ml/r | |||
| tyre | Front/Rear model | 16.9-28 | ||
| Front tyre pressure | 0.35Mpa | |||
| Rear tyre pressure | 0.35MPa | |||
| Travel speed | 36Km/h | |||
| Brake system | Service brake | Gas pushed oil, built-in-selfregulation,self-balance | ||
| Parking brake | Manual brake | |||
| System pressure | Loading hydraulic system | 20Mpa | ||
| Digging hydraulic system | 20Mpa | |||
| Steering hydraulic system | 14Mpa | |||

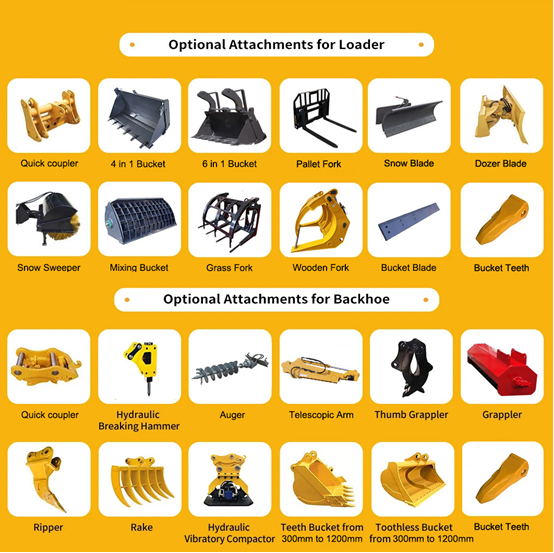

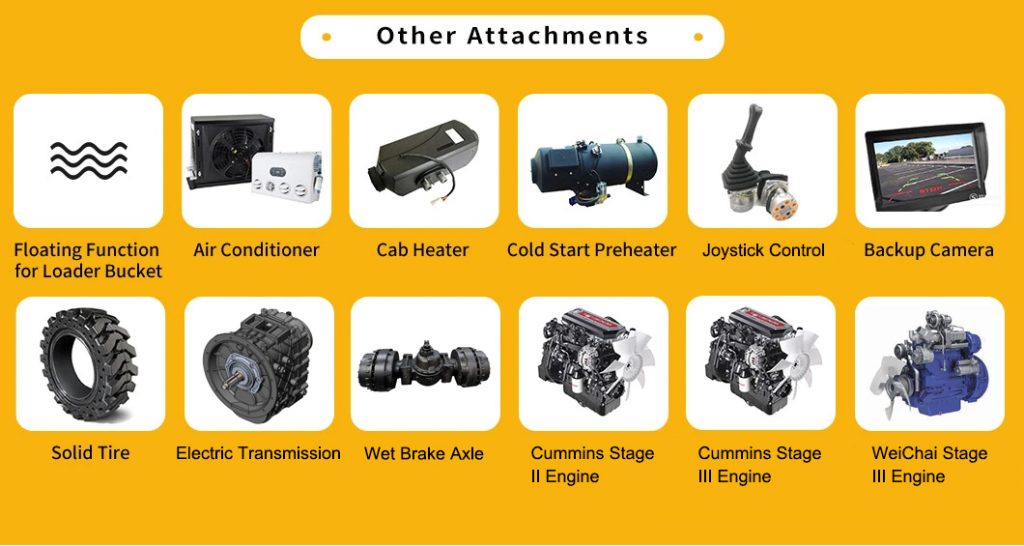

There are many optional attachments available for our backhoe loaders, including pallet forks, multifunctional buckets, hydraulic breaker hammer, etc.
