Track Bulldozer
Featured Product

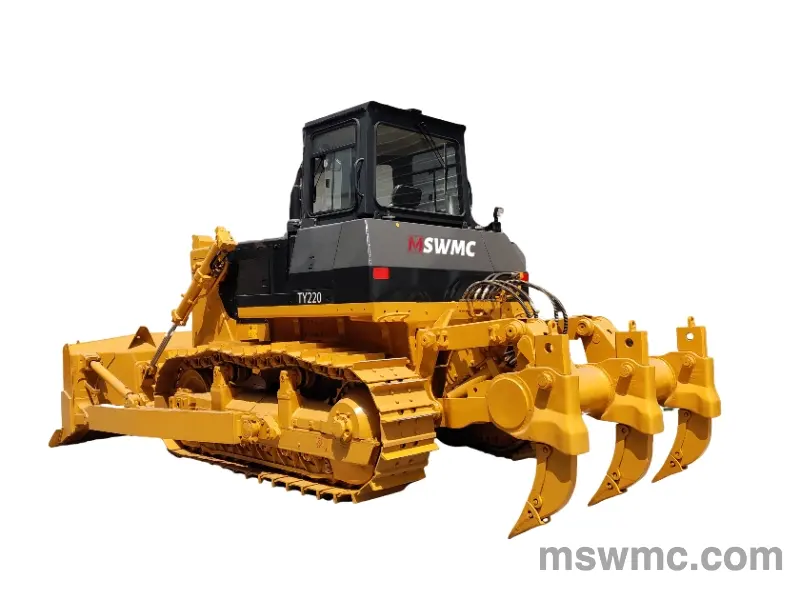

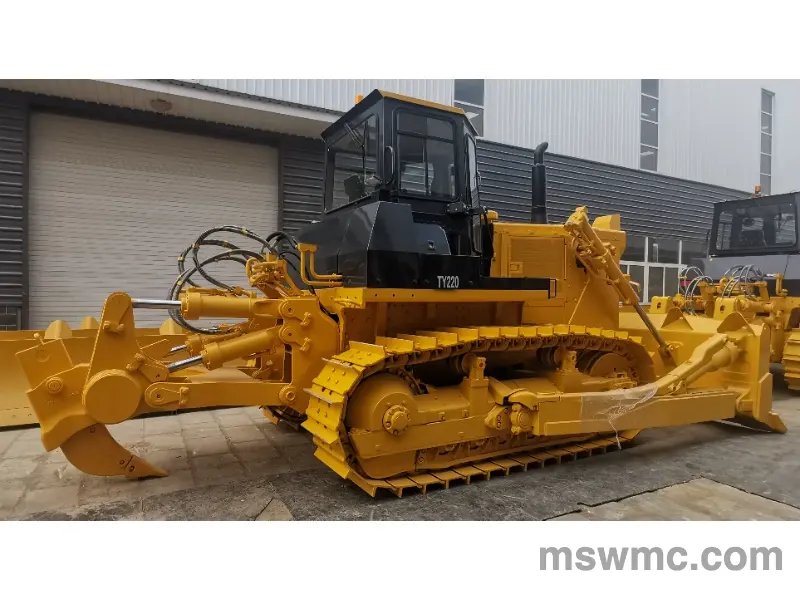

TY220

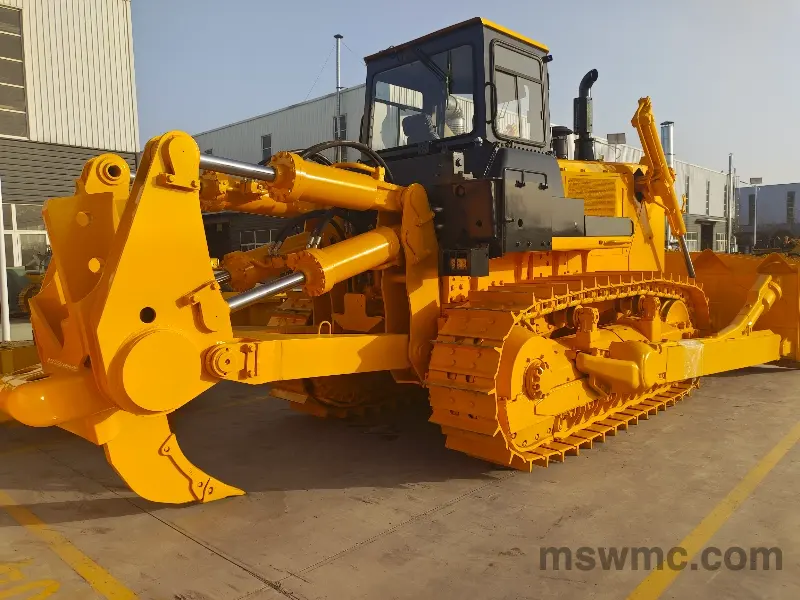

Track Bulldozer TY220 (220HP) - Medium-sized crawler bulldozer with powerful performance for construction, mining, and earth-moving operations.
Quality Durable Efficiency
Features
High Power Output
220HP engine provides excellent pushing power for demanding earth-moving applications.
Advanced Hydraulics
Load-sensing hydraulic system for efficient power distribution and fuel economy.
Durable Components
Heavy-duty components designed for extended service life in tough conditions.
Operator Comfort

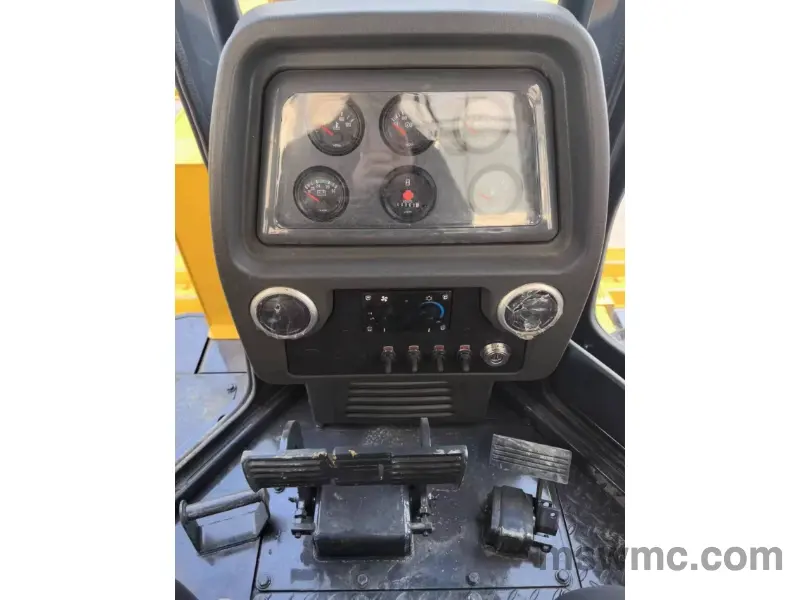

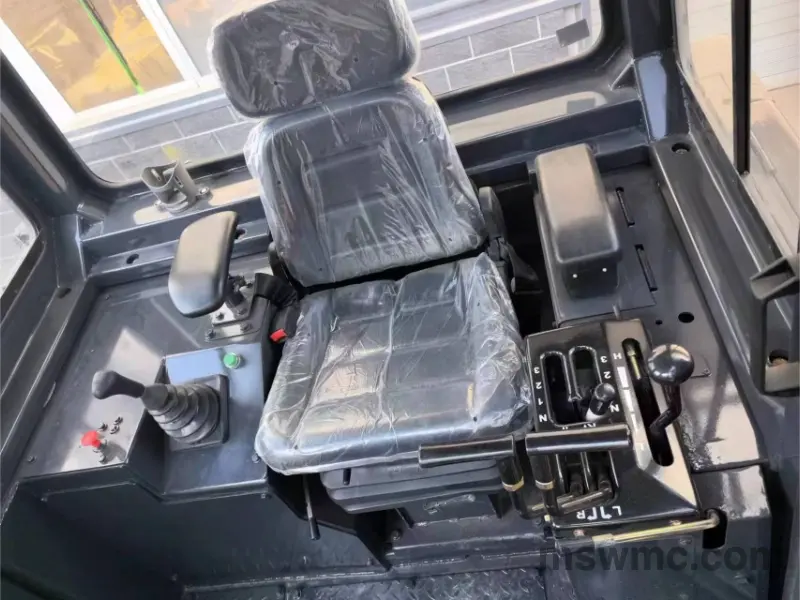

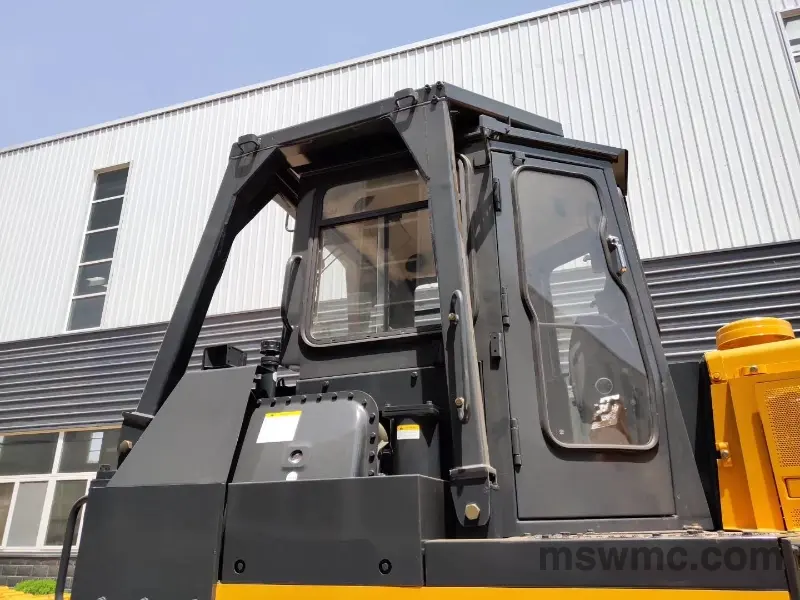

Air-conditioned cab with suspension seat and intuitive controls.
Specifications
| Model | TY220 |
| Engine Power | 220HP |
| Engine Brand | Cummins/Weichai |
| Operating Weight | 23,500 kg |
| Blade Type | Straight Tilt/U-Blade |
| Dimension (L×W×H) | 5460×3725×3395mm |
| Engine Model | Cummins NT855-C280S10 |
| Rated Power | 175 KW (238HP) @1800rpm |
| Max Torque | 1030 N·m @1300rpm |
| Fuel Consumption | 205 g/kW·h |
| Transmission | Planetary gear, power-shift |
| Travel Speed (Forward) | 0-3.6/6.5/11.2 km/h |
| Travel Speed (Reverse) | 0-4.3/7.7/13.2 km/h |
| Track Rollers | 6 each side |
| Track Shoe Width | 560mm |
| Track Gauge | 2000mm |
| Ground Pressure | 0.077 Mpa |
| Hydraulic Max Pressure | 14 Mpa |
| Blade Capacity | 6.4-7.5 m³ |
| Blade Width | 3725mm |
| Max Drop Below Ground | 538mm |
## Track Bulldozer TY220
The TY220 is a versatile medium-sized bulldozer that combines power with efficiency. Its 220HP engine and advanced hydraulic system make it ideal for a wide range of construction and mining applications.
### Key Features
- Powerful 220HP Cummins or Weichai engine
- Advanced load-sensing hydraulic system
- Heavy-duty undercarriage for maximum durability
- Spacious and comfortable operator cab
### Applications
- Large-scale construction projects
- Open-pit mining operations
- Dam and reservoir construction
- Heavy earth-moving tasks
The TY220 is a versatile medium-sized bulldozer that combines power with efficiency. Its 220HP engine and advanced hydraulic system make it ideal for a wide range of construction and mining applications.
