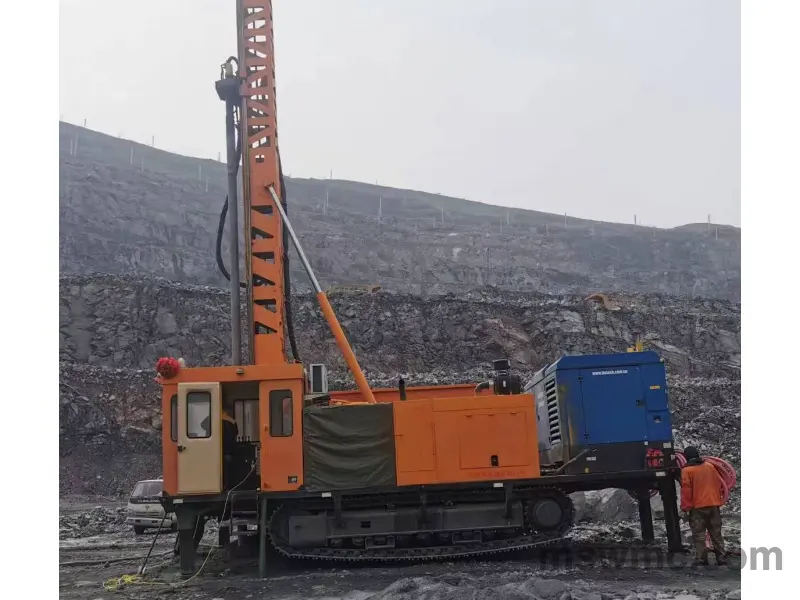

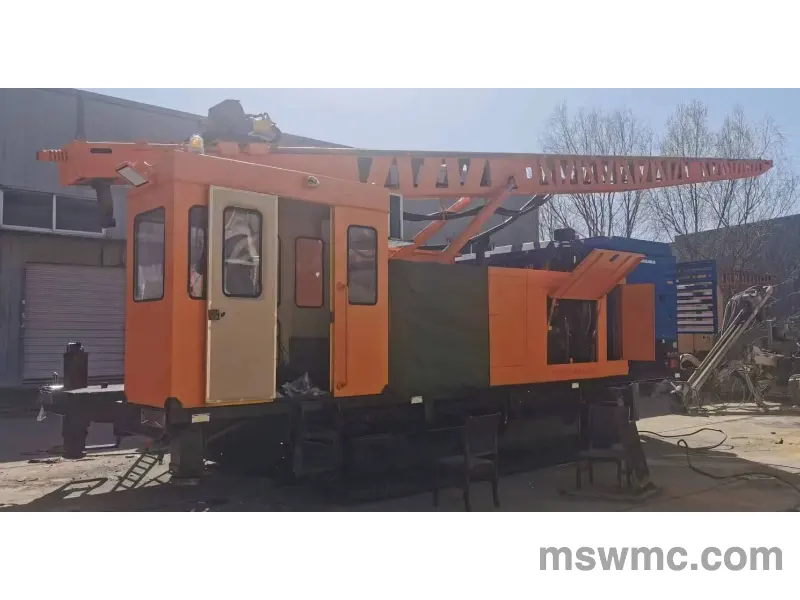

SWDM 280BE-DTH full hydraulic crawler mounted large diameter blast hole surface down-the-hole drill rig
SWDM 280BE-DTH is a full hydraulic surface drilling rig with cab, dust removal system, long distance travel driven by the engine and drilling working powered by electricity. It is suit for open-pit mining. It features high efficiency, durable, easy to maintain and high reliability.
Product Description
FEATURES:
· SWDM 280BE adopts the high pressure screw air compressor as the power for impactor to realize the fast drilling. Using hydraulic servo and electric control system, the operation is safe and simple and easy for maintenance. The machine is equipped with double sets power system: diesel engine and electricity. When the distance for shift of the sites is far, it adopts the form of diesel engine drive, to realize fast travel and avoid to drawing the electricity cable.
· It is operated with both the manual control (in the cab) and remote control (outdoor of the cab). Drilling the holes less than 14 meters of depth, do not need to connect and unload drilling pipe, so one operator can complete all operations.
Main Specifications
| Model | SWDM 280BE | |
| Hole range | 165-310mm | |
| Drill depth | 14500mm (available to 20,000mm by extension of the drilling rod) | |
| Rod type | Optional for Ø139mm or Ø168mm | |
| Quantity of ROD | 1 | |
| Torque | 7500N.m | |
| Rotary speed | 20-35rpm | |
| Feeding strock | 14,500mm | |
| Lifting force | 70KN | |
| Travel speed | 1.5Km/h and 2.5km/h | |
| Drilling direction angle | Horizontal 70°---90° | |
| Gradeability | 25° | |
| Adaptor | Optional:QL6/CY6/DHD380 | |
| Dust removal type | Optional for ry type or wet type | |
| Compressor manufacturer | Fuda-Atlas-Copco(double-stage screw) | |
| Power of electricity motor for compressor | 250KW | |
| Flow | 29 m³/min | |
| Working pressure | 2.1Mpa | |
| Engine for travel | ||
| Engine Manufacturer | CUMMINS | |
| Emission levels | Tier3 | |
| Engine power | 125KW | |
| Dimension (L x W x H, Working conditions) | 8100*4000*16000mm | |
| Dimension (L x W x H ,shipment) | 16000*3500*3800mm | |
| Weight | 38500Kgs | |
| Capacity for voltage transformer | Input 6000v/ 10000v | |
