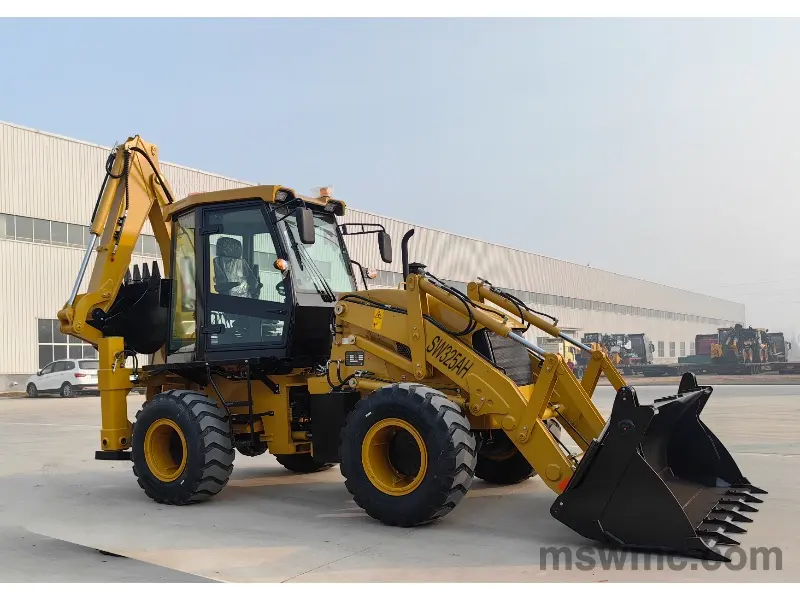

Articulated backhoe loader SW325AH
Operating weight: 7600Kgs Gross power: 75kW Maximum dig depth: 4.06m Maximum loader bucket capacity: 1.0m³
Product Description
Central articulated chassis provides small steering radius and flexible operation.Hydraulic transmission, four –wheel driving, stable performance and high reliability.The frame is made of manganese steel with long service life.
Each key component of the SWMC backhoe range is stringently tested. The chassis, boom, loader arms and other major parts are all subjected to prolonged high-stress loading, while the transmission design has been repeatedly put through its paces over thousands of cycles.
High service life,high load carrying capacity and high working speed.Modular radiator-24hours of uninterrupted operation. Efficient and reliable hygraulic system.
QUALITY, RELIABILITY AND DURABILITY.
SPECIFICATIONS
| Overall dimension | Operating weight | 7600KG | ||
| Overall dimension(L×W×H) | 5654×2365×3764mm | |||
| Wheel base | 2415mm | |||
| Wheel tread | 1848mm | |||
| Ground clearance | 300mm | |||
| Performance | Loader bucket capacity | 1.0m³ | ||
| Loader breakout force | 47KN | |||
| Loader lifting capacity | 2500KG | |||
| Loader Dumping height | 2780mm | |||
| Loader Dumping reach | 1112mm | |||
| Loader digging depth | 52mm | |||
| Backhoe bucket capacity | 0.3m³ | |||
| Backhoe bucket digging force | 50KN | |||
| Backhoe swing angle | 180° | |||
| Backhoe dumping height | 3820mm | |||
| Backhoe max digging depth | 4060mm | |||
| Max. traction force | 52KN | |||

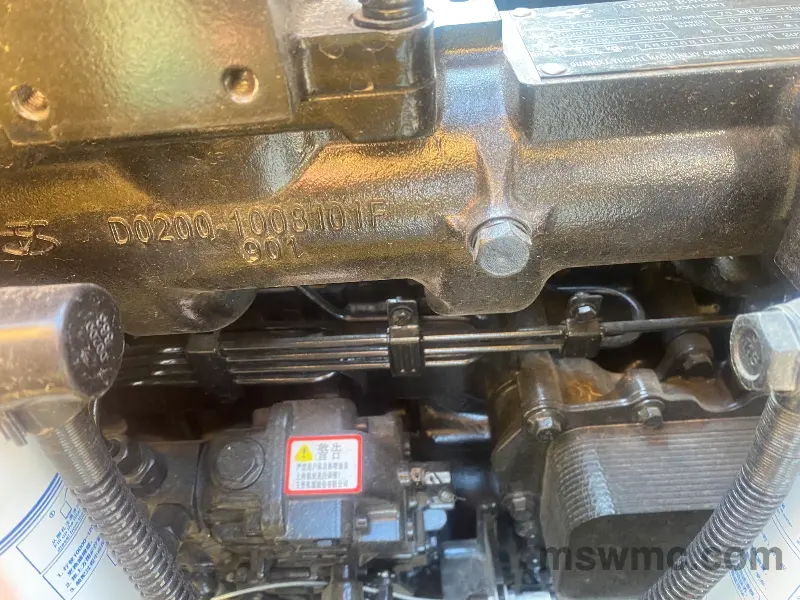

| Engine | Model | Yuchai YC4A105Z-T20 | ||
| Type | Inline,direct injection,water-cooled,turbocharged,4-stroke | |||
| Cylinder-Inner diameter*stroke | 4-108×132 | |||
| Rated power | 75KW | |||
| Rated speed | 2200r/min | |||
| Min. fuel consumption | 230g/kw.h | |||
| Max. torque | 400N.m | |||
| Displacement | 4.8L | |||
| Steering system | Type | hydraulic steering | ||
| Diverter model | BZZ5-250 | |||
| Pump delivery | 63ml/r | |||
| Steering angle | ±35° | |||
| Min. turning radius | 5590mm | |||
| Driving axle | Model | ZL28 | ||
| Manufacturer | China axle | |||
| Max. load of front axle | 12.3T | |||
| Max. load of rear axle | 12.3T | |||
| Transmission | Gearbox | Mechanically Operated Hydraulic Synchronized Shift | ||
| Model | ZL15 | |||
| Gears | forward and 2 reverse gears | |||
| Hydraulic torque converter | YJ280 | |||
| Inlet pressure | 0.4-0.65Mpa | |||
| Outlet pressure | 1.5-1.8Mpa | |||
| Cooling mode | oil-cooling pressure circulation | |||
| Pump delivery | 40ml/r | |||
| tyre | Front/Rear model | 16/70-20 | ||
| Front tyre pressure | 0.35Mpa | |||
| Rear tyre pressure | 0.35Mpa | |||
| Travel speed | 22Km/h | |||
| Brake system | Service brake | Air over oil caliper,external,self-regulation,self-balance | ||
| Parking brake | Manual brake | |||
| System pressure | Loading hydraulic system | 19Mpa | ||
| Digging hydraulic system | 19Mpa | |||
| Steering hydraulic system | 14Mpa | |||
There are many optional attachments available for our backhoe loaders, including pallet forks, multifunctional buckets, hydraulic breaker hammer, etc.
