Track Forestry Bulldozer TY220F (220HP)
Overall Dimension: 5390×3735×3530 mm (Standard) Operating Weight: 24700 kgs (With forestry protection frame) Engine: Model Cummins NT855-C280S10 Rated Power: 175 KW Max. drawbar pull of Winch: 350 KN (for first layer)
Product Description

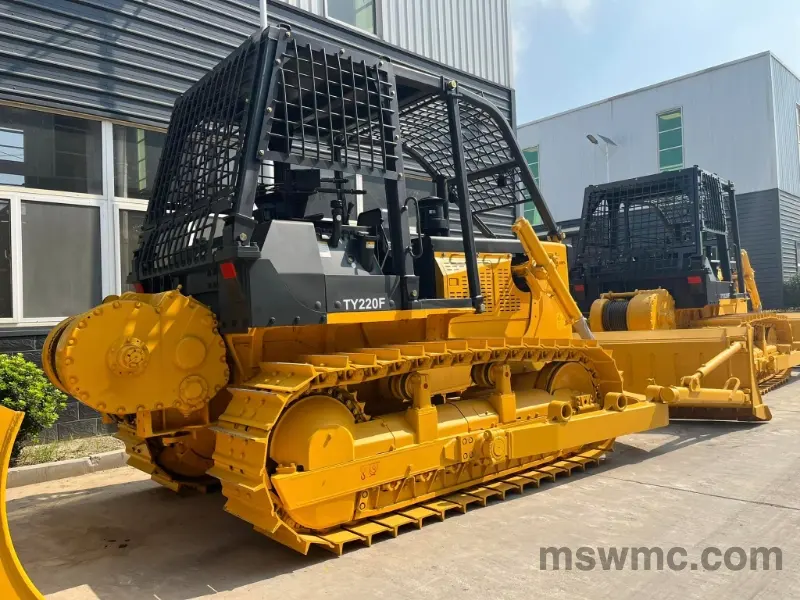

TY220F lumbering forest bulldozer is developed in response to the demands of forest working environment, TY220F lumbering bulldozer adopts the hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable performances, and light and flexile operations. The forward extended rollover protection structure can effectively protect the whole machine.
1,A Cummins NT855C280S10 engine with 175KW rated power gives you the power and reliability you need. Improved fuel economy over the previous model with strong torque output and low fuel consumption gives you excellent overall fluid efficiency.
2,Quality undercarriage parts including rollers,tracks and chains ensures the stable and good performance of the dozer.Different types of the tracks can meet different working condition,like dryland,wetland and rock conditions.

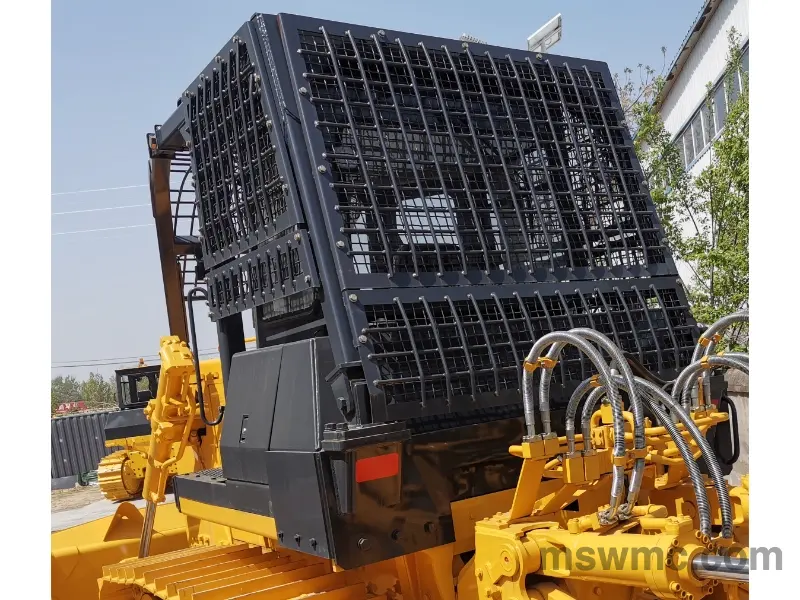

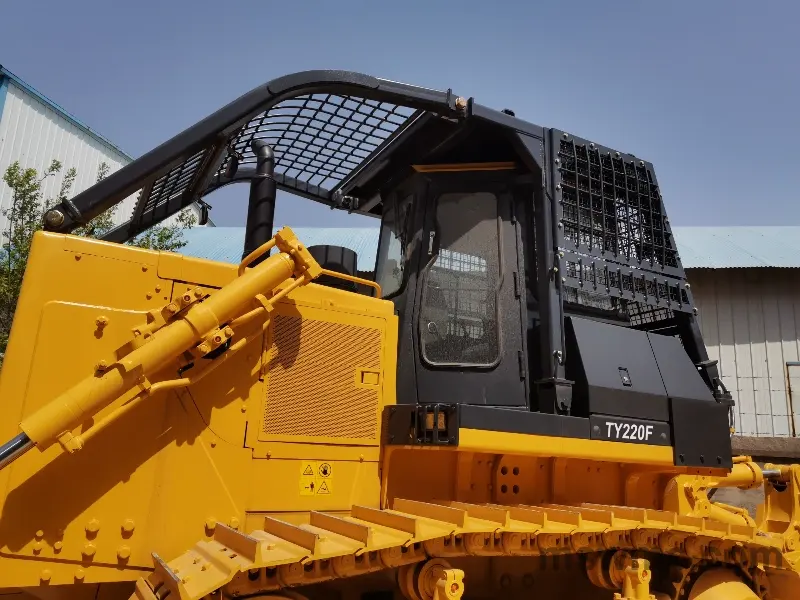

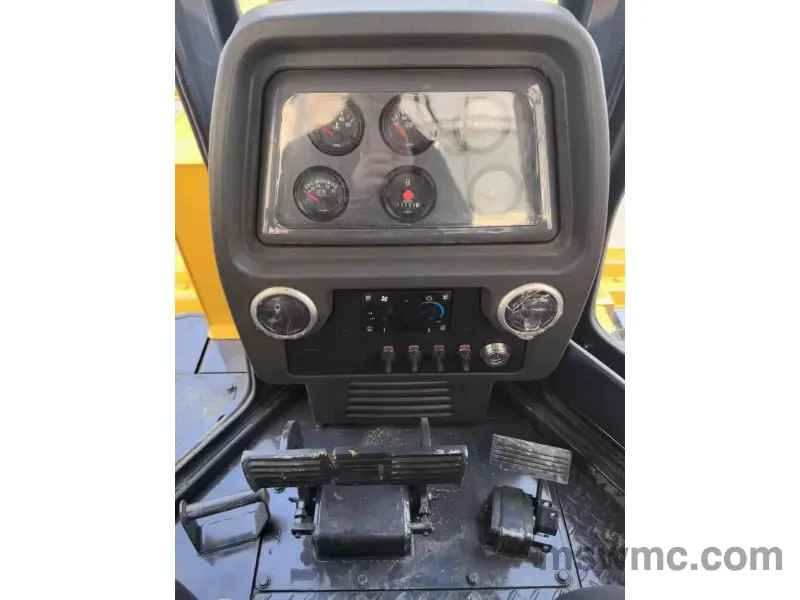

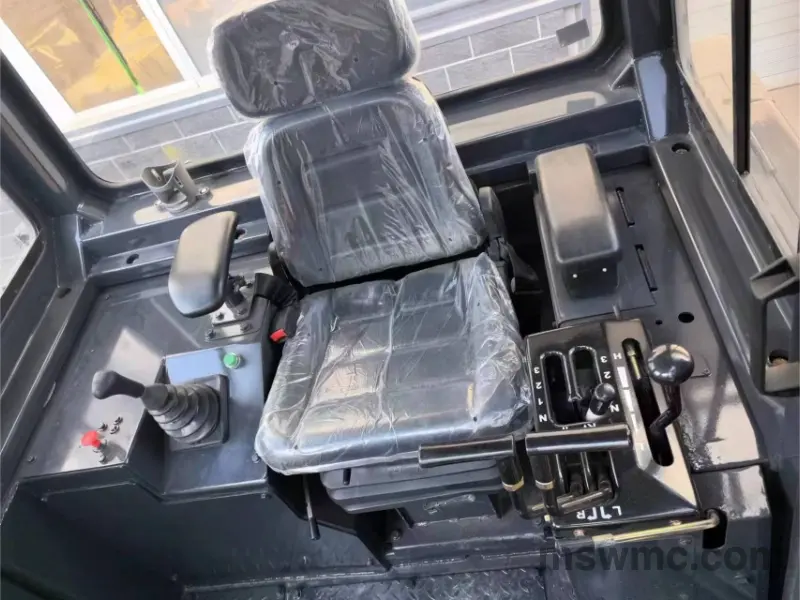

3,TY220F forest bulldozer equipped with special lumbering ROPS shelter/cab. The wide (610mm) tracks and the mechanical winch can be equipped to achieve good trafficability and self-rescue performance and adapt to lumbering, skidding, and traction transport in the rainforests and forest farms.

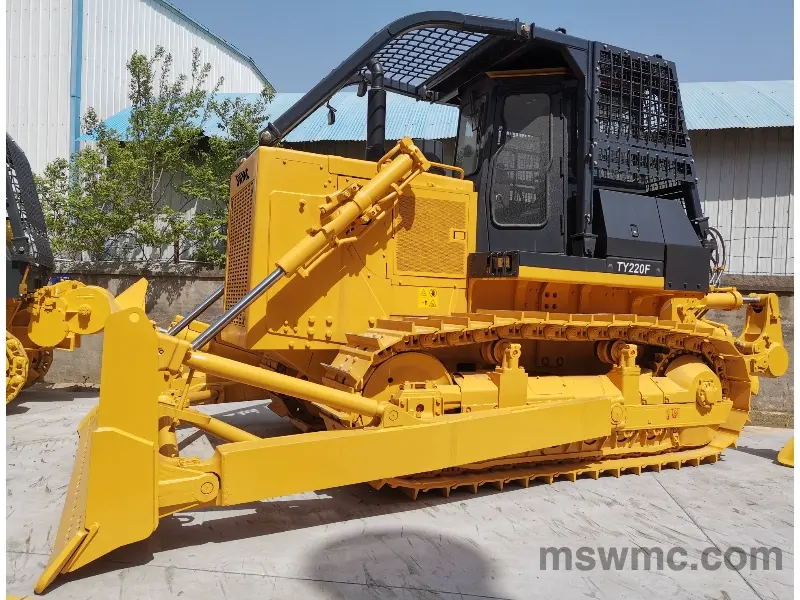

4,The standard lumbering blade can powerfully remove all kinds of bramble obstacles along the lumbering path. The winch is used for traction of the lumbers and self-rescue of the bulldozer during the lumbering operations, of which the self-rescue function of the winch guarantees the operator's safety.
Main Specifications
| Overall | Dimension | 5390×3735×3530 mm | ||
| Operating Weight | 24700 kg (Without ripper) | |||
| ENGINE | Model | Cummins NT855-C280S10 | ||
| Type | Water-cooled, In-line, overhead valve direct injection, turbocharged diesel | |||
| Number of Cylinders | 6 | |||
| Bore × Stroke | Φ139.7×152.4 mm | |||
| Piston Displacement | 14.01 L | |||
| Rated Power | 175 KW (238HP) @1800 rpm | |||
| Max Torque | 1030 N·m @1300 rpm | |||
| Fuel Consumption | 205 g/kW·h | |||
| TRANSMISSION | Torque Converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Planetary gear type, power-shift, forced lubrication | |||
| Central Drive Shaft | Spiral bevel gear, single-stage speed reduction, splash lubrication | |||
| Steering clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | |||
| Steering brake | Wet type,floating band structure,foot brake with hydraulic booster | |||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| TRAVEL SPEED | Gear | 1st | 2nd | 3rd |
| Forward | 0~3.6 km/h | 0~6.5 km/h | 0~11.2 km/h | |
| Reverse | 0~4.3 km/h | 0~7.7 km/h | 0~13.2 km/h | |
| UNDERCARRIAGE SYSTEM | Type | Sprayed beam, suspended structure of equalizer | ||
| No. of Carrier Rollers | 2 each side | |||
| No. of Track Rollers | 6 each side | |||
| No. of Track Shoes | 38 each side | |||
| Track Shoe type | Single Grouser | |||
| Width of Track shoe | 610 mm | |||
| Pitch | 216 mm | |||
| Track Gauge | 2000 mm | |||
| Ground Pressure | 0.074 Mpa | |||
| HYDRAULIC SYSTEM | Max Pressure | 14 Mpa | ||
| Pump Type | Gear Pump | |||
| Displacement | 262 L/Min | |||
| Bore of Working Cylinder | 120 mm × 2 | |||
| BLADE | Blade Type | Straight-tilt Blade | Angle Blade | Semi-U-blade |
| Blade Capacity | 6.4 m³ | 4.7 m³ | 7.5 m³ | |
| Blade Width | 3725mm | 4365 mm | 3725 mm | |
| Blade Height | 1315 mm | 1055 mm | 1374 mm | |
| Max Drop Below Ground | 538 mm | 535 mm | 540 mm | |
| MaxTilt Adjustment | mm | >500 mm | >755 mm | |
| THREE SHANK RIPPER | Max digging depth | 666 mm | ||
| Max lift above ground | 555 mm | |||
| Weight of 3-shank ripper | 2495 kg | |||
| SINGLE SHANK RIPPER | Max digging depth | 695 mm | ||
| Max lift above ground | 515 mm | |||
| Weight of 1-shank ripper | 2453 kg | |||
Winch (Optional)
Type: Hydraulic-control, mechanical driving winch
Max. drawbar pull: 350 KN (for first layer)
Cable speed: 16 m/min (for first layer)
Diameter of the cable: 28mm
Rated system output: 50 L/min
Overall dimension: 1683X1364X1365 mm
