SWDS 115AN-DTH

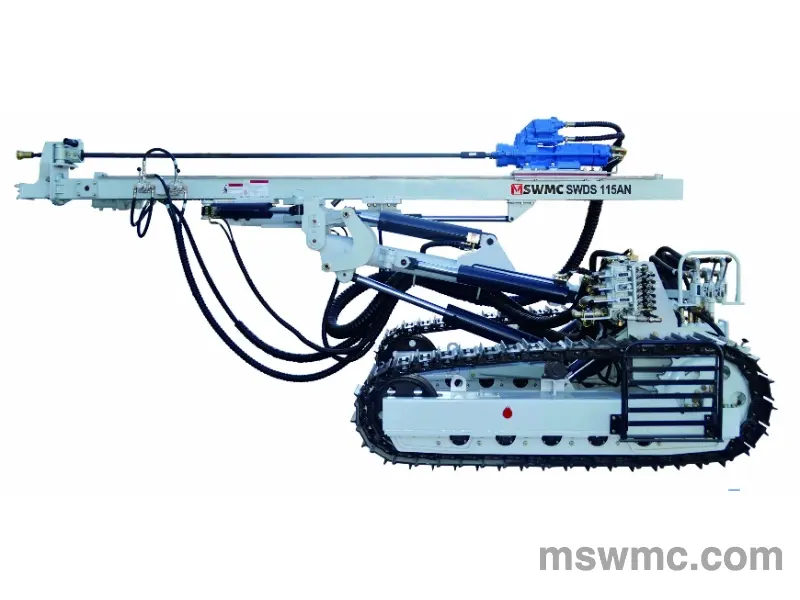

Separated crawler mounted surface pneumatic down-the-hole drilling rig with rotary reducer
Quality Durable Efficiency
Features
Rotary Reducer
Internal structure is reasonable and easy to maintain
Enhanced Shock Absorber
Rotary head replaced with enhanced shock absorber to reduce impact
Gear-type Rotary Motor
Provides reliable and efficient drilling performance
Specifications
| Model | SWDS 115AN-DTH |
| Type | Separated Crawler Mounted |
| Drilling Method | Down-the-hole |
| Power Type | Pneumatic |
| Drilling Hole Diameter | 90-165mm |
| Max Actual Air Pressure | 2.5 Mpa |
| Air Consumption | 1.73/0.3 Mpa m³/min |
| Turning Torque | 2000 N.m |
| Turning Speed | 70 Rpm |
| Pushing Length | 3980mm |
| Maximum Pushing Force | 11 KN |
| Sliding Frame Swing | Left 47°/Right 54° |
| Drilling Boom Swing | Left 40°/Right 40° |
| Drilling Boom Pitching | Horizontal 23°/46° |
| Grade Ability | 35° |
| Feeding Motor Power | 3.8 Kw |
| Dimension | 6100×2360×2105mm |
| Weight | 5400kg |
## SWDS 115AN-DTH Drilling Rig
### Rotary Reducer
The internal structure is reasonable and easy to maintain. The rotary head is replaced with an enhanced shock absorber, which can reduce the impact reaction force of the drilling. The gear-type rotary motor provides smooth and reliable operation.
### Rotary Reducer
The internal structure is reasonable and easy to maintain. The rotary head is replaced with an enhanced shock absorber, which can reduce the impact reaction force of the drilling. The gear-type rotary motor provides smooth and reliable operation.
