Front steering backhoe loader SW380BX
Operating weight: 8200Kgs Gross power: 75kW Maximum dig depth: 4.085m Maximum loader bucket capacity: 1.0m³
Product Description
PRODUCTIVITY AND PERFORMANCE.
The integral frame, provides excellent stability and is suitable for excavation work.The excavation working device is side shift type, high strength and good structure stability. The loading end working device adopts eight-bar linkage mechanism.
Low maintenance engine.SW380X is a highly efficient 75KW engine that doesn't require costly DPF technology;this keeps servicing and refueling costs low.
High service life,high load carrying capacity and high working speed.Modular radiator-24hours of uninterrupted operation.Efficient and reliable hygraulic system.
SPECIFICATIONS
| Overall dimension | Operating weight | 8200KG | ||
| Overall dimension(L×W×H) | 6050×2465×3152mm | |||
| Wheel base | 2280mm | |||
| Wheel tread | 1785mm | |||
| Ground clearance | 300mm | |||
| Performance | Loader bucket capacity | 1.0m³ | ||
| Loader breakout force | 47KN | |||
| Loader lifting capacity | 2500KG | |||
| Loader Dumping height | 2760mm | |||
| Loader Dumping reach | 900mm | |||
| Loader digging depth | 52mm | |||
| Backhoe bucket capacity | 0.3m³ | |||
| Backhoe bucket digging force | 50KN | |||
| Backhoe swing angle | 180° | |||
| Backhoe dumping height | 3795mm | |||
| Backhoe max digging depth | 4085mm | |||
| Max. traction force | 60KN | |||
| Engine | Model | Yuchai YC4A105Z-T20 | ||
| Type | Inline,direct injection,water-cooled,turbocharged,4-stroke | |||
| Cylinder-Inner diameter*stroke | 4-108×132 | |||
| Rated power | 75KW | |||
| Rated speed | 2200r/min | |||
| Min. fuel consumption | 230g/kw.h | |||
| Max. torque | 400N.m | |||
| Displacement | 4.8L | |||
| Steering system | Type | hydraulic steering | ||
| Diverter model | BZZ5-250 | |||
| Pump delivery | 63ml/r | |||
| Steering angle | ±36° | |||
| Min. turning radius | 6581mm | |||
| Driving axle | Model | WZZD75D | ||
| Manufacturer | China axle | |||
| Max. load of front axle | 22.5T | |||
| Max. load of rear axle | 18.5T | |||
| Transmission | Gearbox | Mechanically Operated Hydraulic Synchronized Shift | ||
| Model | ZL15 | |||
| Gears | 2 forward and 2 reverse gears | |||
| Hydraulic torque converter | YJ290 | |||
| Inlet pressure | 0.4-0.65Mpa | |||
| Outlet pressure | 1.5-1.8Mpa | |||
| Cooling mode | oil-cooling pressure circulation | |||
| Pump delivery | 40ml/r | |||

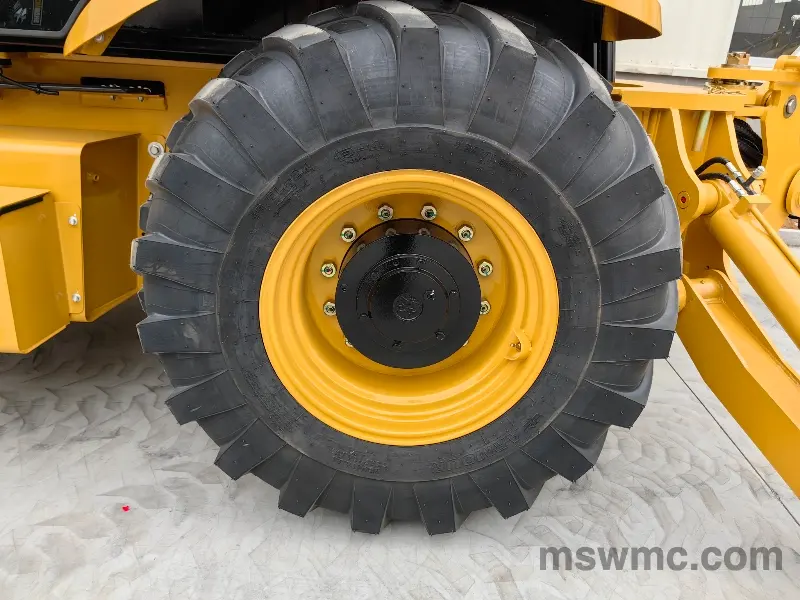

| tyre | Front/Rear model | 14-17.5/19.5L-24 | ||
| Front tyre pressure | 0.4Mpa | |||
| Rear tyre pressure | 0.35Mpa | |||
| Travel speed | 24Km/h | |||
| Brake system | Service brake | Air over oil caliper,external,self-regulation,self-balance | ||
| Parking brake | Manual brake | |||
| System pressure | Loading hydraulic system | 19Mpa | ||
| Digging hydraulic system | 19Mpa | |||
| Steering hydraulic system | 14Mpa | |||
There are many optional attachments available for our backhoe loaders, including pallet forks, multifunctional buckets, hydraulic breaker hammer, etc.
