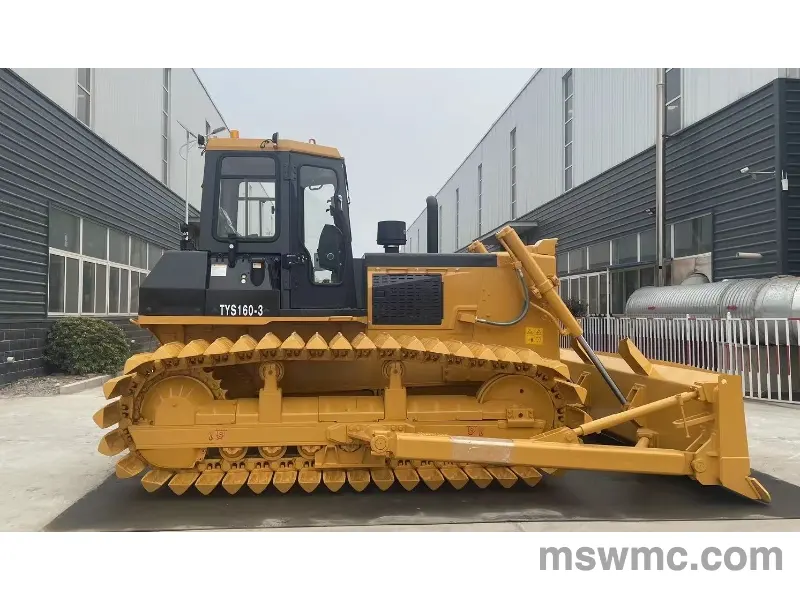

Swamp Track Bulldozer TYS160-3 (160HP)
Overall Dimension: 5176×4190×3170 mm Operating Weight: 18100 kgs Engine Model：Weichai WD10G178E25 Rated Power: 131 KW Blade Capacity: 3.8 m³ (Straigt-tilting blade)
Product Description
TYS160-3 bulldozer is track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic assisting operating, pilot hydraulic blade control and single level steering and braking control.
TYS160-3 bulldozer is characterized by high efficient, open view, optimized structure, 950-1000mm width track shone with lower ground pressure, easy operation and service with low cost and reliable entire quality.It is the upgrade product for waste landfill working.
It performs low ground pressure and convenience to repair at low cost due to simple structure with over width tracks and 7 pcs of track rollers. It is ideal bulldozer used in the oil field, coast planting, environment system and sloppy area ect.
Specifications
| SPECIFICATIONS | Blade type | Straight-Tilt | ||
| (not including ripper) Operation weight (Kg) | 18100 | |||
| Ground pressure(KPa) | 35 | |||
| Track gauge(mm) | 2300 | |||
| Gradient | 30°/25° | |||
| Min. ground clearance (mm) | 492 | |||
| Dozing capacity (m³) | 3.85 | |||
| Blade width (mm) | 4190 | |||
| Max. digging depth (mm) | 485 | |||
| Overall dimensions (mm) | 5176×4190×3170 | |||

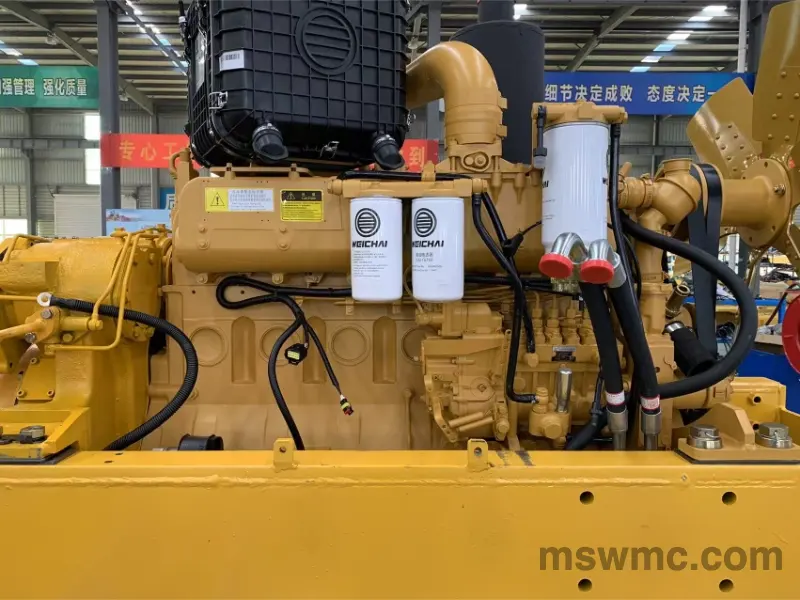

| ENGINE | Type | Weichai WD10G178E25 | ||
| Rated revolution (rpm) | 1850 | |||
| Rated power (KW) | 131 | |||
| Max. torque (N•m/rpm) | 830/1200 | |||
| Rated fuel consumption(g/KW•h) | ≤218 | |||
| UNDERCARRIAGE SYSTEM | Type | Swing type of sprayed beam. Suspended structure of equalizer bar | ||
| Number of track rollers (each side) | 7 | |||
| Number of carrier rollers (each side) | 2 | |||
| Pitch (mm) | 203.2 | |||
| Width of shoe (mm) | 950 | |||
| GEAR | Gear | 1st | 2nd | 3rd |
| Forward (Km/h) | 0-3.29 | 0-5.82 | 0-9.63 | |
| Backward (Km/h) | -4.28 | 0-7.59 | 0-12.53 | |
| IMPLEMENT HYDRAULIC SYSTEM | Max. system pressure (MPa) | 14 | ||
| Pump type | Double gears pump | |||
| System output(L/min) | 243 | |||
DRIVING SYSTEM
Torque converter 3-element 1-stage 1-phase
Transmission Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated.
Braking clutch Brake is oil two direction floating band brake operated by mechanical foot pedal.
Final drive The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal.
