Track Bulldozer TY160-3 (160HP)
Overall Dimension: 4990×3440×3110 mm Operating Weight: 16400 kgs Engine Model：Weichai WD10G178E25 Rated Power: 131 KW Blade Capacity: 4.5 m³ (Straigt-tilting blade)
Product Description

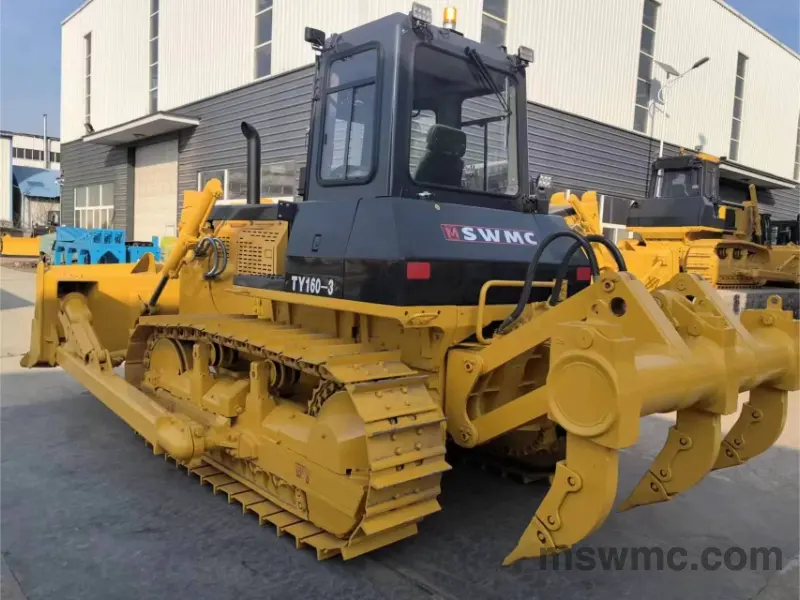

TY160-3 Crawler Bulldozers are powerful tracked machines that use mounted blades to move materials. SWMC TY160-3 bulldozer is a 160hp power shift crawler bulldozer.The power shift transmission is more flexible and easy operating compared with mechanical transmission.

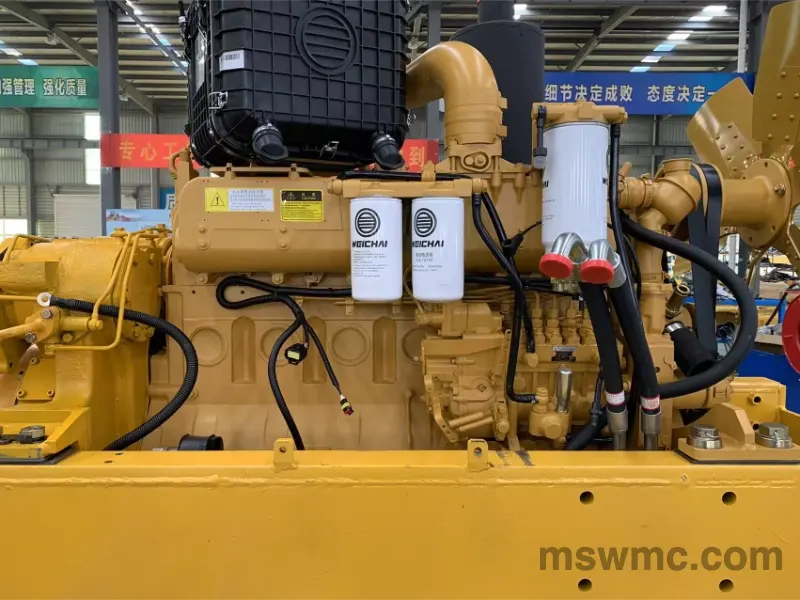

A reliable 131KW Weichai WD10G178E25 engine gives you the more power and reliability you need.The planetary power shift transmission with forced lubrication and the hydraulically assisted steering system achieve light operations of the machine and feature high transmission power and high productivity.
Main Specifications
| Overall | Dimension | 4990×3440×3110 mm | ||
| Operating Weight | 16400 kgs | |||
| ENGINE | Model | Weichai WD10G178E25 | ||
| Type | Water-cooled, in-line, 4-stroke,direct injection | |||
| Number of Cylinders | 6 | |||
| Bore × Stroke | Φ126×130 mm | |||
| Piston Displacement | 9.726 L | |||
| Rated Power | 131 KW (178HP) @1850 rpm | |||
| Max Torque | 765 N·m @1300 rpm | |||
| Fuel Consumption | 214 g/kW·h | |||
| TRANSMISSION | Torque Converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Planetary gear type, power-shift, forced lubrication | |||
| Central Drive Shaft | Spiral bevel gear, single-stage speed reduction, splash lubrication | |||
| Steering clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | |||
| Steering brake | Wet type,floating band structure,foot brake with hydraulic booster | |||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| UNDERCARRIAGE SYSTEM | Type | Sprayed beam, suspended structure of equalizer | ||
| No. of Carrier Rollers | 2 each side | |||
| No. of Track Rollers | 6 each side | |||
| No. of Track Shoes | 37 each side | |||
| Track Shoe type | Single Grouser | |||
| Width of Track shoe | 510 mm | |||
| Pitch | 203.2 mm | |||
| Track Gauge | 1880 mm | |||
| Ground Pressure | 0.067 Mpa | |||
| HYDRAULIC SYSTEM | Max Pressure | 14 Mpa | ||
| Pump Type | Gear Pump | |||
| Displacement | 243 L/Min | |||
| Bore of Working Cylinder | 110 mm × 2 | |||
| BLADE | Blade Type | Straight-tilt Blade | Angle Blade | Semi-U-blade |
| Blade Capacity | 4.5 m³ | 4.3 m³ | 5 m³ | |
| Blade Width | 3440 mm | 3970 mm | 3556 mm | |
| Blade Height | 1150 mm | 1040 mm | 1120 mm | |
| Max Drop Below Ground | 540 mm | 540 mm | 530 mm | |
| MaxTilt Adjustment | 400 mm | – | 400 mm | |

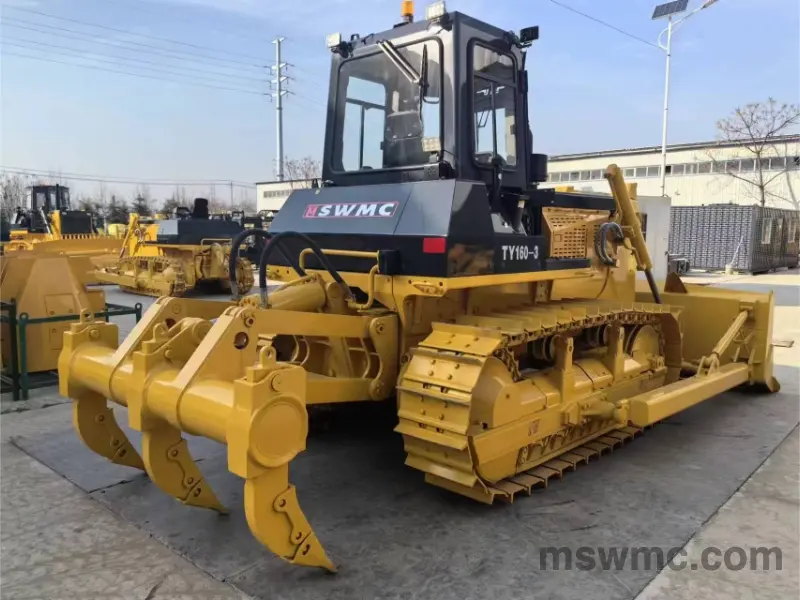

| THREE SHANK RIPPER | Max digging depth | 572 mm | ||
| Max lift above ground | 592 mm | |||
| Weight of 3-shank ripper | 1667 kgs | |||
Applications
SWMC crawler bulldozer applicable for road construction,water and electricity engineering,farmland leveling,port building, mining and other engineering conditions.
