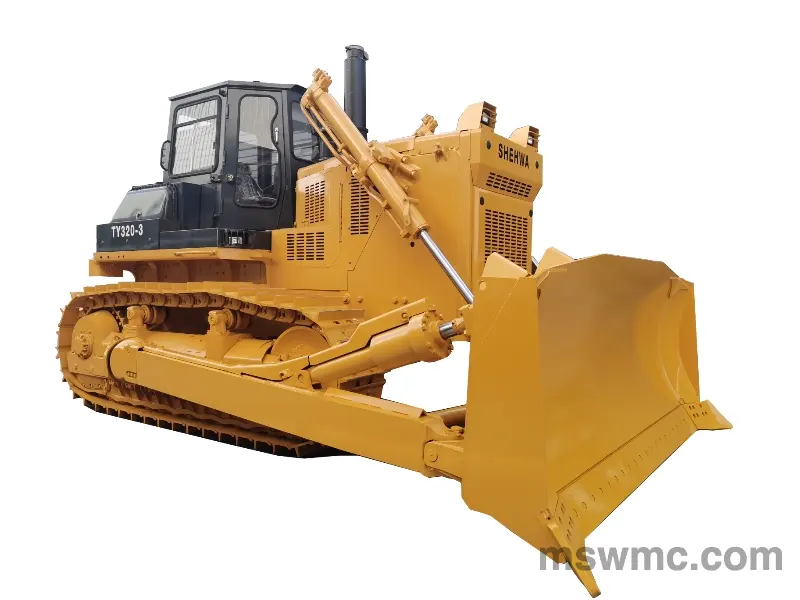

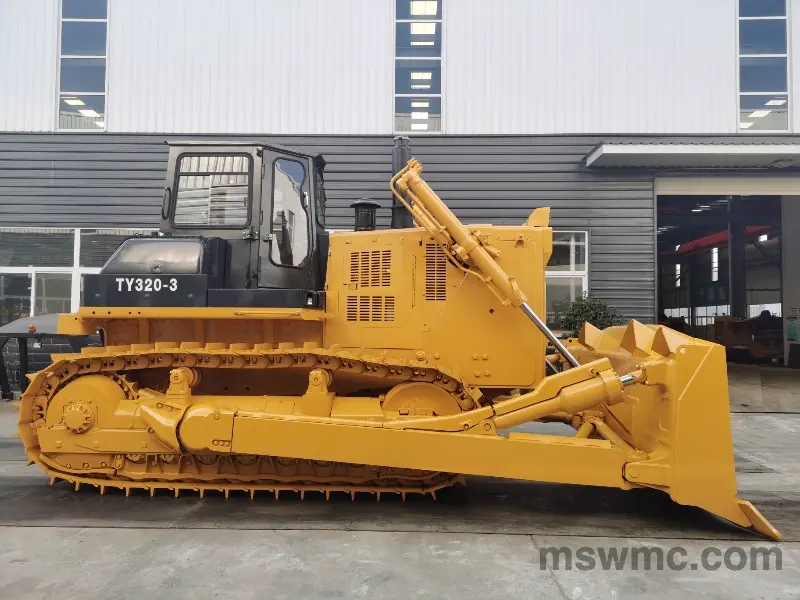

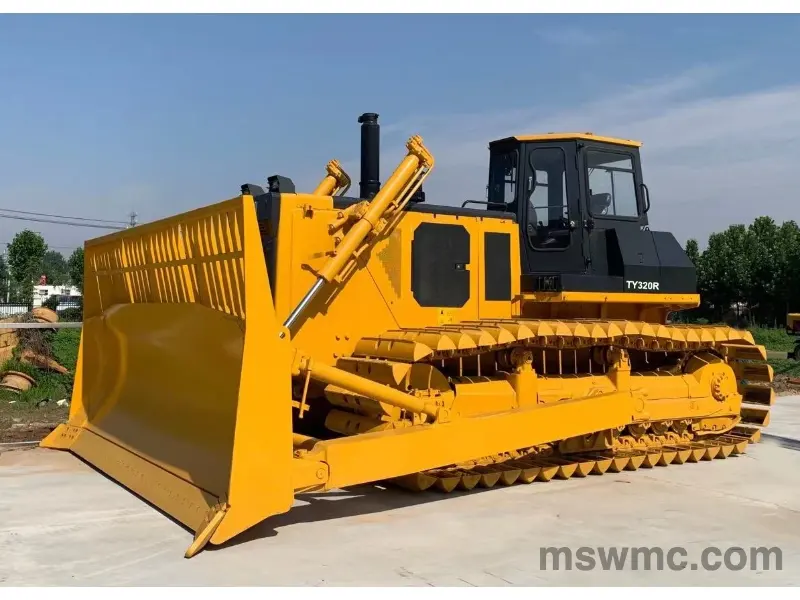

Track Bulldozer TY320-3 (320HP)
Overall Dimension: 6880×4150×3640 mm Operating Weight: 37200 Kgs (Without ripper) Engine Model:Cummins NTA855-C360S10 Rated Power: 257 KW Blade Capacity: 10.0 m³ (Straigt-tilting blade)
Product Description
Bulldozer,also called Dozer, powerful machine for pushing earth or rocks, used in road building, farming,construction and wrecking. SWMC TY320-3 bulldozer is a large size dozer with fully automatic powershift transmission,added power and steering performance team up for a new level of productivity. Larger blade capacity gets the job done in fewer passes.
TY320-3 bulldozer is semi-rigid suspended, hydraulic transfer, hydraulic controlled track type bulldozer. Planetary, power shift transmission which is Unilever operated. The operation system designed according to human and machine engineering makes operation more easily, efficiently and accurately. Strong power, excellent performances, high operation efficiency and wide view show the advantage features. Optional includes U-blade, three shank ripper, ROPS and other equipments. It is your best choice for road building, hydro-electric construction, field modification, port building, mine development and other constructions.
Main Specifications
| Overall | Dimension | 6880×4150×3640 mm | ||
| Operating Weight | 37200 kg | |||
| ENGINE | Model | Cummins NTA855-C360S10 | ||
| Type | Water-cooled, In-line, overhead valve direct injection, turbocharged diesel | |||
| Number of Cylinders | 6 | |||
| Bore × Stroke | Φ139.7×152.4 mm | |||
| Piston Displacement | 14.01 L | |||
| Rated Power | 257 KW (238HP) @2000 rpm | |||
| Max Torque | 1440 N·m @1400 rpm | |||
| Fuel Consumption | 245 g/kW·h | |||
| TRANSMISSION | Torque Converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Planetary gear type, power-shift, forced lubrication | |||
| Central Drive Shaft | Spiral bevel gear, single-stage speed reduction, splash lubrication | |||
| Steering clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | |||
| Steering brake | Wet type,floating band structure,foot brake with hydraulic booster | |||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| TRAVEL SPEED | Gear | 1st | 2nd | 3rd |
| Forward | 0~3.6 km/h | 0~6.6 km/h | 0~11.5 km/h | |
| Reverse | 0~4.4 km/h | 0~7.8 km/h | 0~13.5 km/h | |
| UNDERCARRIAGE SYSTEM | Type | Sprayed beam, suspended structure of equalizer | ||
| No. of Carrier Rollers | 2 each side | |||
| No. of Track Rollers | 7 each side | |||
| No. of Track Shoes | 41 each side | |||
| Track Shoe type | Single Grouser | |||
| Width of Track shoe | 560 mm | |||
| Pitch | 228.6 mm | |||
| Track Gauge | 2140 mm | |||
| Ground Pressure | 0.105 Mpa | |||
| HYDRAULIC SYSTEM | Max Pressure | 14 Mpa | ||
| Pump Type | Gear Pump | |||
| Displacement | 355 L/Min | |||
| Bore of Working Cylinder | 140 mm × 2 | |||
| BLADE | Blade Type | Straight-tilt Blade | Angle Blade | Semi-U-blade |
| Blade Capacity | 10 m³ | 6 m³ | 11.9 m³ | |
| Blade Width | 4130 mm | 5000 mm | 4130 mm | |
| Blade Height | 1590 mm | 1140 mm | 1710 mm | |
| Max Drop Below Ground | 560 mm | 630 mm | 560 mm | |
| MaxTilt Adjustment | 1000 mm | 500 mm | 1000 mm | |

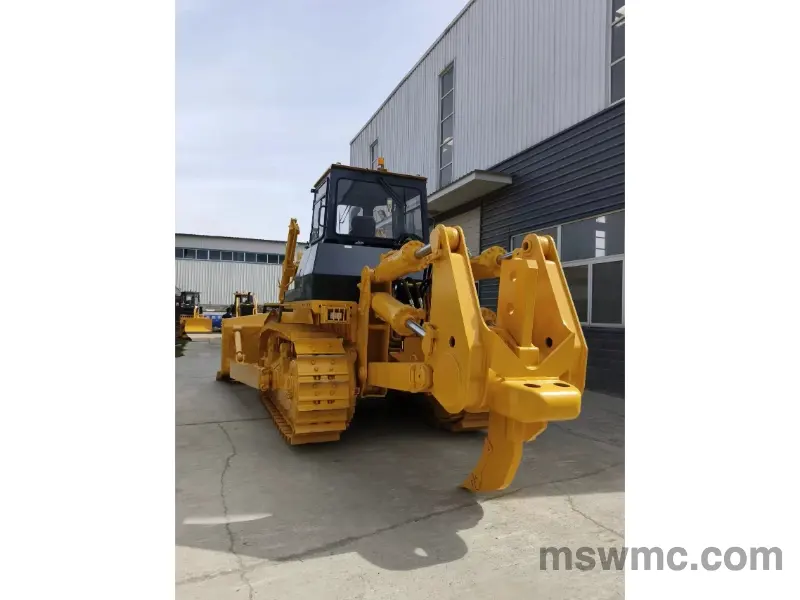

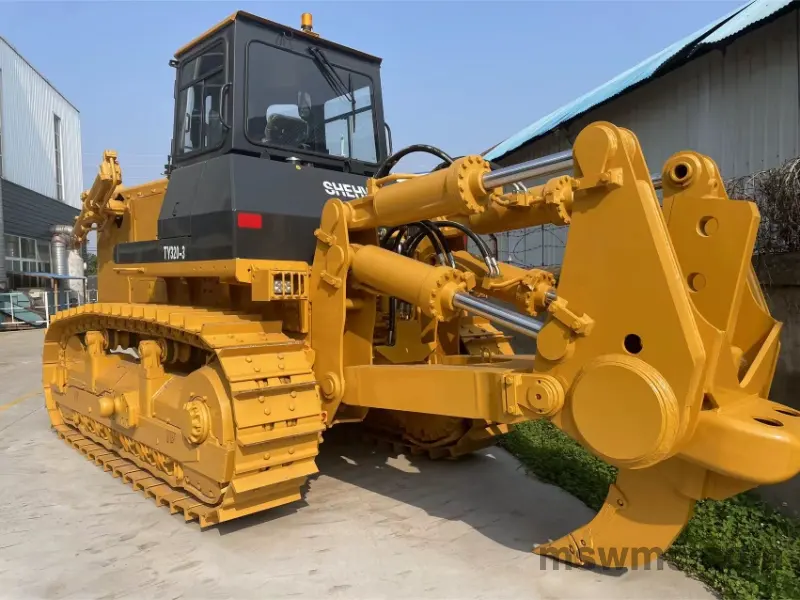

| THREE SHANK RIPPER | Max digging depth | 842 mm | ||
| Max lift above ground | 883 mm | |||
| Weight of 3-shank ripper | 3802 kg | |||
| SINGLE SHANK RIPPER | Max digging depth | 1250 mm | ||
| Max lift above ground | 965 mm | |||
| Weight of 1-shank ripper | 3252 kg | |||
Transportation & Applications
Bulldozers are used for shallow digging and ditching; short-range transportation of material; spreading soil dumped from trucks; rough grading; removing trees, stumps, and boulders; and cleaning and leveling around loading equipment. A bulldozer alone can do many types of excavation, and it is useful in combination with other machinery in most excavation work.
