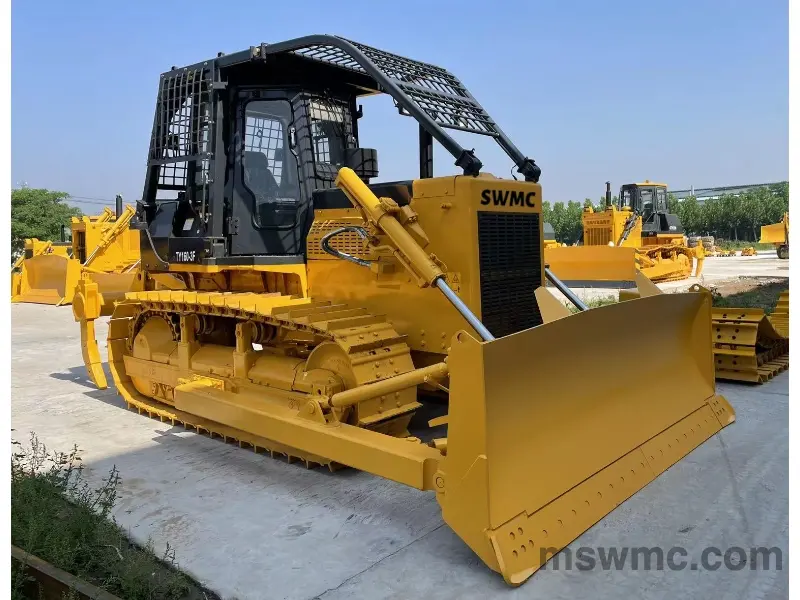

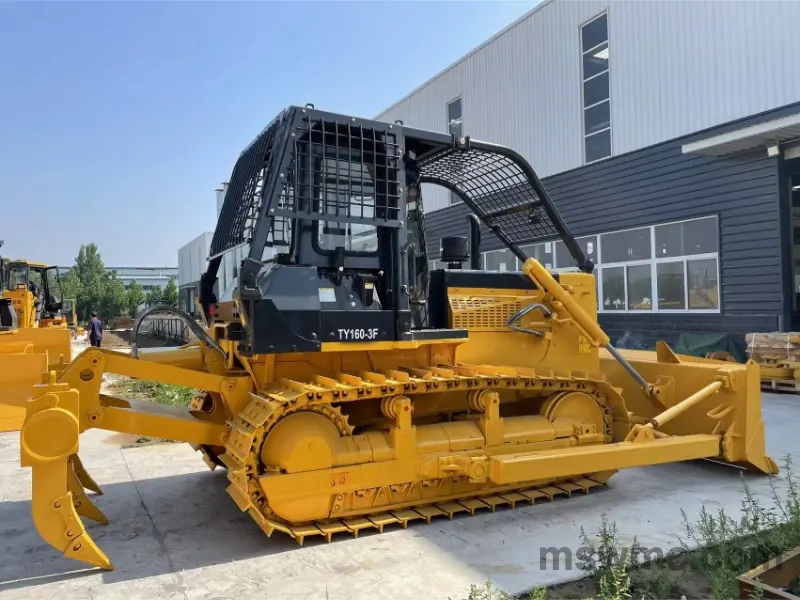

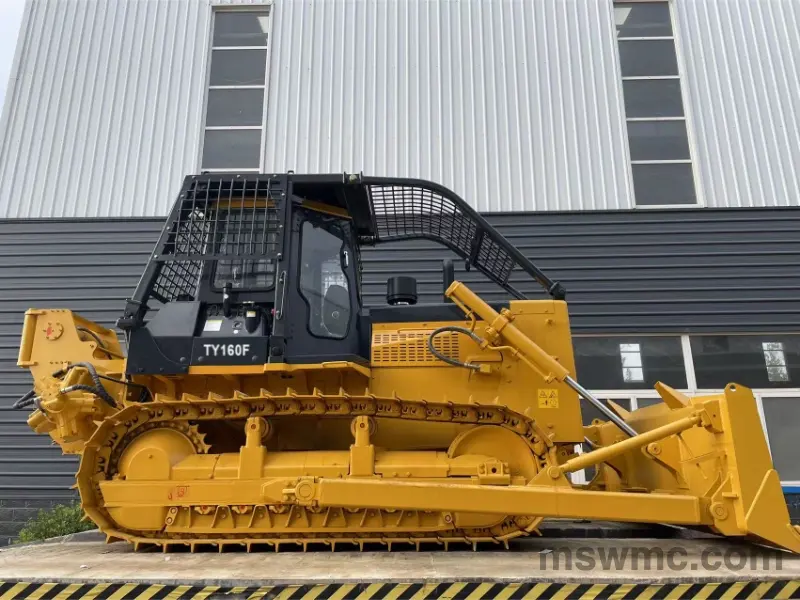

TrackForestry Bulldozer TY160-3F (160HP)
Overall Dimension: 5140×3440×3180 mm (Without winch) Operating Weight: 16800 kgs Engine Model：Weichai WD10G178E25 Rated Power: 131 KW Max. drawbar pull of Winch: 150 KN (for first layer)
Product Description
TY160-3F forestry type bulldozer designed and developed for contructing road and land clearing.Our forest bulldozers can help to construct new main roads as they are needed and do maintenance services for existing roads that are needed in various situations such as after loggers harvest trees and after heavy rains that cause erosion etc.
Using our forest clearing bulldozers,loggers can build new roads by clearing all debris, weeds,and overgrowth of vegetation in the forest understory.In other cases, the debris left from a logging operation needs to be removed. We attach a rake to the front of the bulldozer and use it to place the debris into windrows.These windrows can either be burned or kept and used as cover for wildlife habitat.
Main Specifications
| Overall | Dimension | 5140×3440×3180 mm | ||
| Operating Weight | 16800 kgs (without winch) | |||

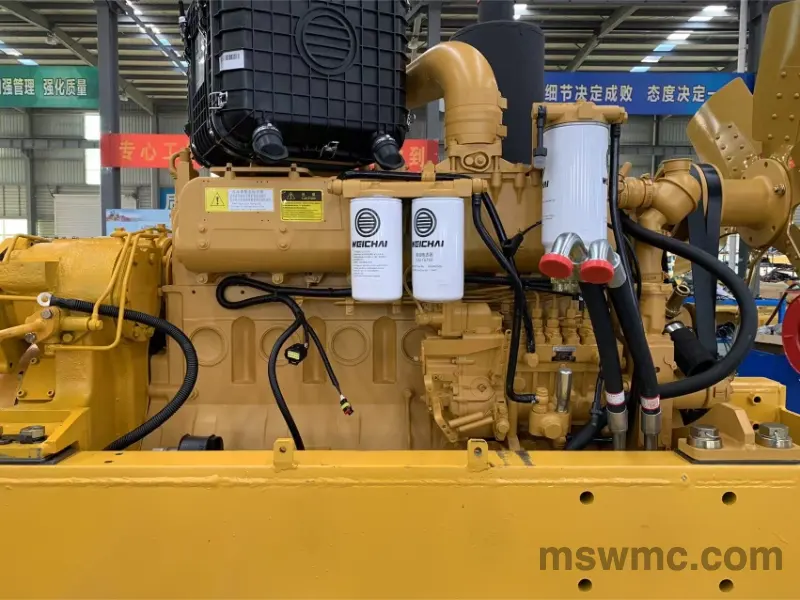

| ENGINE | Model | Weichai WD10G178E25 | ||
| Type | Water-cooled, in-line, 4-stroke,direct injection | |||
| Number of Cylinders | 6 | |||
| Bore × Stroke | Φ126×130 mm | |||
| Piston Displacement | 9.726 L | |||
| Rated Power | 131 KW (178HP) @1850 rpm | |||
| Max Torque | 765 N·m @1300 rpm | |||
| Fuel Consumption | 214 g/kW·h | |||
| TRANSMISSION | Torque Converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Planetary gear type, power-shift, forced lubrication | |||
| Central Drive Shaft | Spiral bevel gear, single-stage speed reduction, splash lubrication | |||
| Steering clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | |||
| Steering brake | Wet type,floating band structure,foot brake with hydraulic booster | |||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| UNDERCARRIAGE SYSTEM | Type | Sprayed beam, suspended structure of equalizer | ||
| No. of Carrier Rollers | 2 each side | |||
| No. of Track Rollers | 7 each side | |||
| No. of Track Shoes | 39 each side | |||
| Track Shoe type | Single Grouser | |||
| Width of Track shoe | 560 mm | |||
| Pitch | 203.2 mm | |||
| Track Gauge | 1880 mm | |||
| Ground Pressure | 0.063 Mpa | |||
| HYDRAULIC SYSTEM | Max Pressure | 14 Mpa | ||
| Pump Type | Gear Pump | |||
| Displacement | 243 L/Min | |||
| Bore of Working Cylinder | 110 mm × 2 | |||
| BLADE | Blade Type | Straight-tilt Blade | Angle Blade | Semi-U-blade |
| Blade Capacity | 4.5 m³ | 4.3 m³ | 5 m³ | |
| Blade Width | 3440 mm | 3970 mm | 3556 mm | |
| Blade Height | 1150 mm | 1040 mm | 1120 mm | |
| Max Drop Below Ground | 540 mm | 540 mm | 530 mm | |
| MaxTilt Adjustment | 400 mm | – | 400 mm | |
| THREE SHANK RIPPER | Max digging depth | 572 mm | ||
| Max lift above ground | 592 mm | |||
| Weight of 3-shank ripper | 1667 kgs | |||
Winch (Optional)
Type: Hydraulic driving winch
Max. drawbar pull: 150 KN (for first layer)
Cable speed: 20 m/min (for first layer)
Diameter of the cable: 26mm
Rated system output: 170 L/min
Overall dimension: 1312X1275X1263 mm
